Air Injection Control Valve: Locations

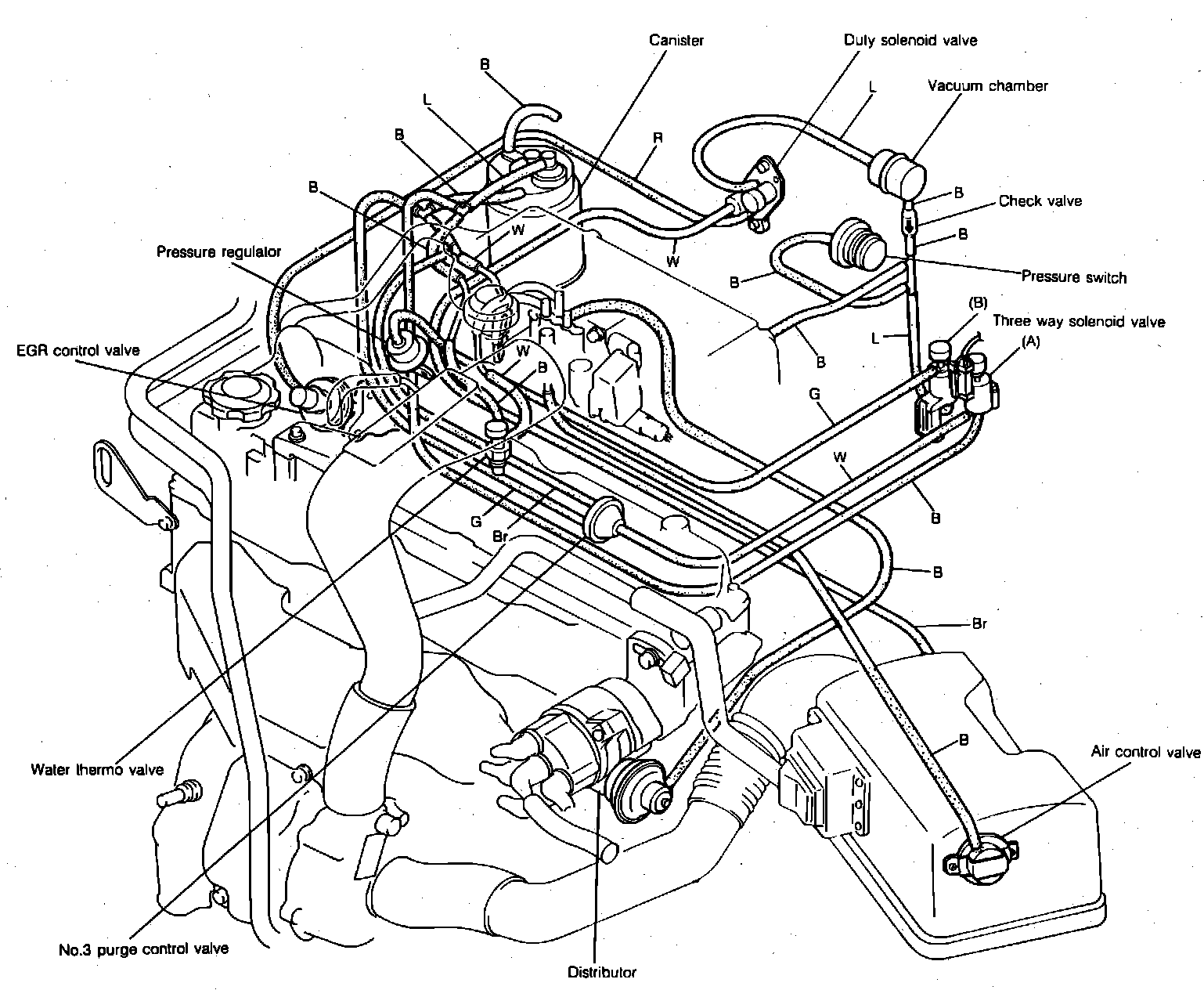

Vacuum Hose Routing.:

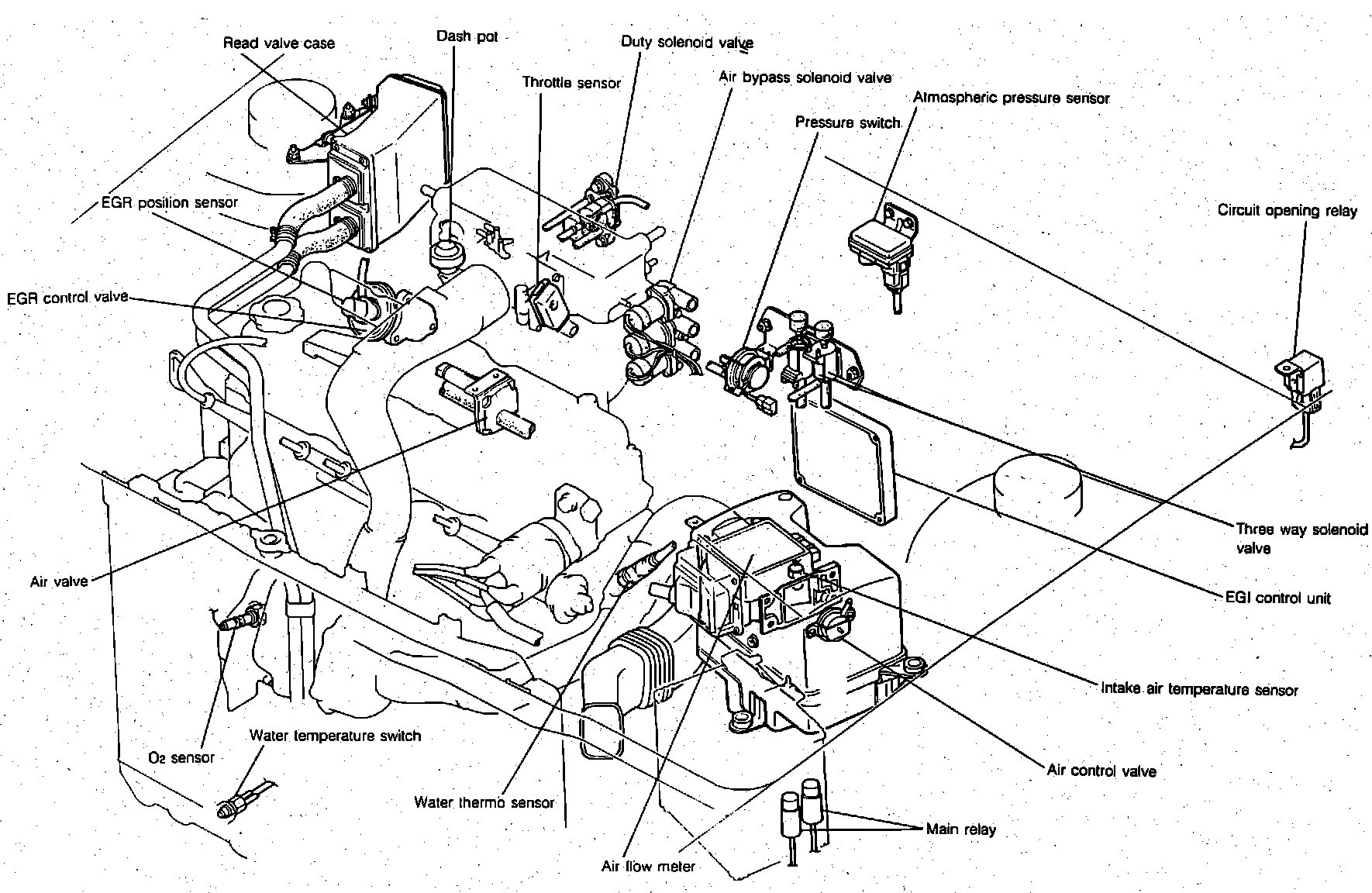

Emission Control Components.:

LH Side Of Engine Compartment

Applicable to: Turbocharged 1986 Models

Emission Control Components.:

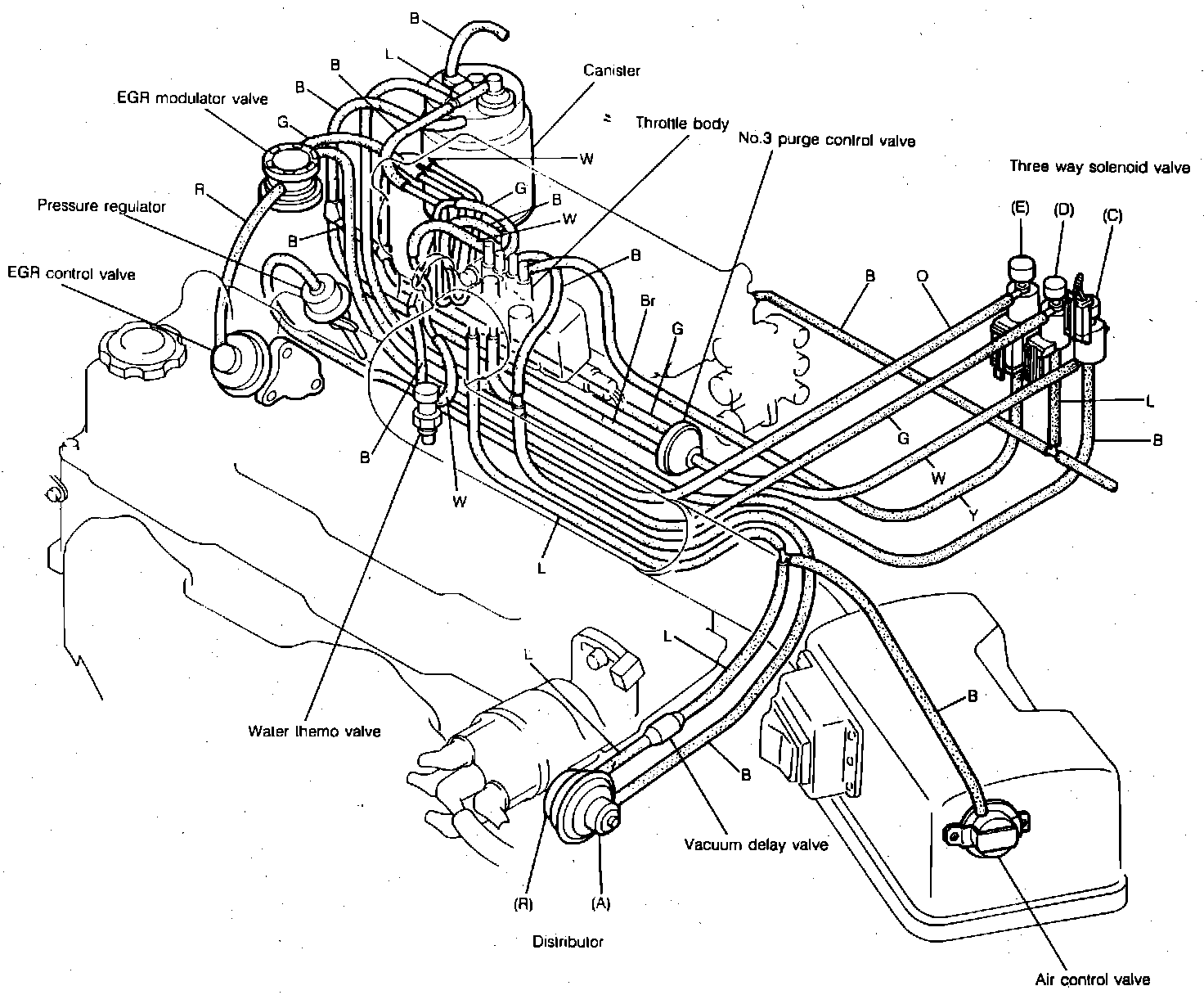

Vacuum Hose Routing.:

LH Side Of Engine Compartment

Applicable to: Non-Turbocharged 1986 Models
