Dieseling/Run on

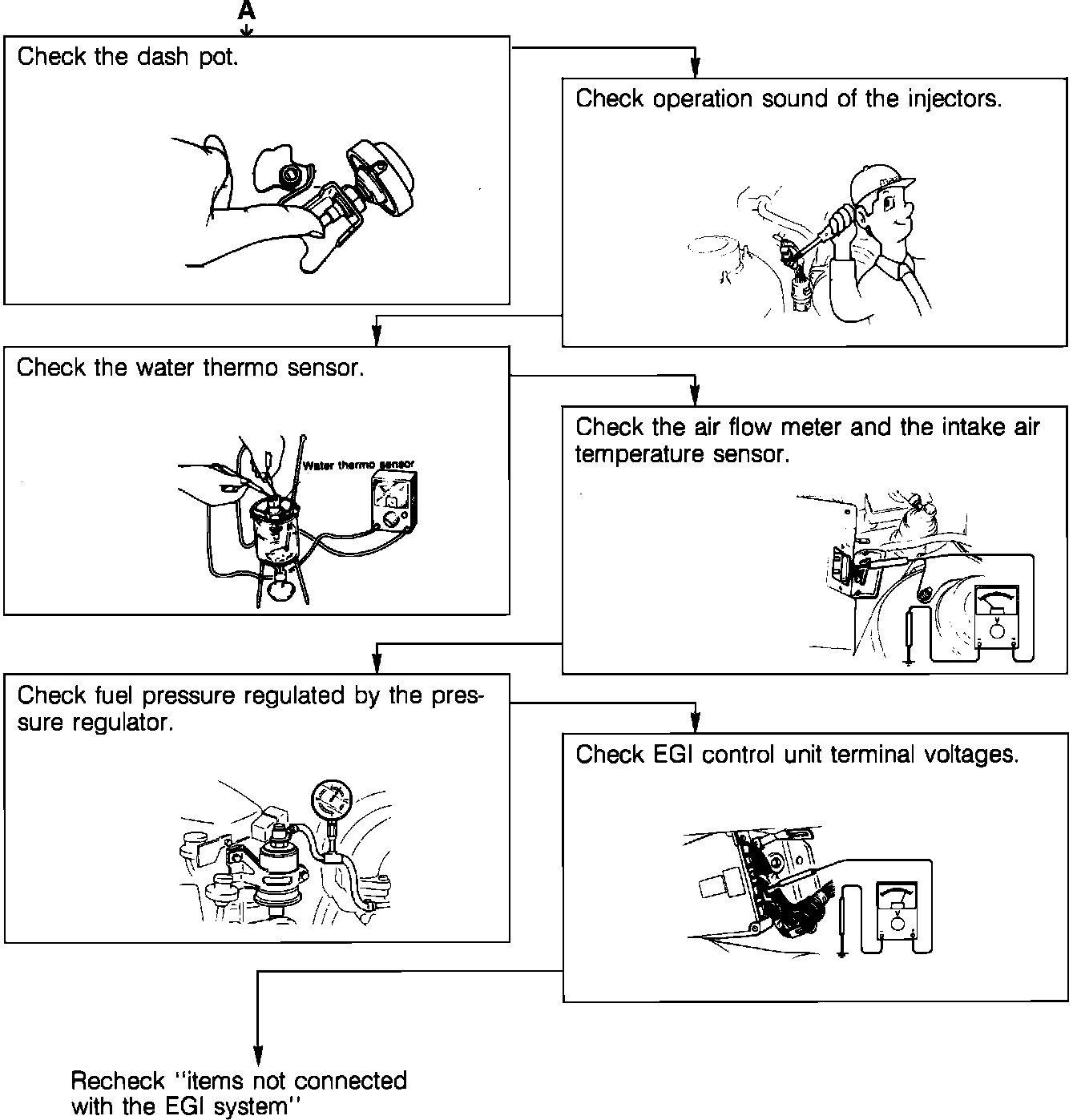

Fig. 31a Afterburn Or Dieseling (Run On):

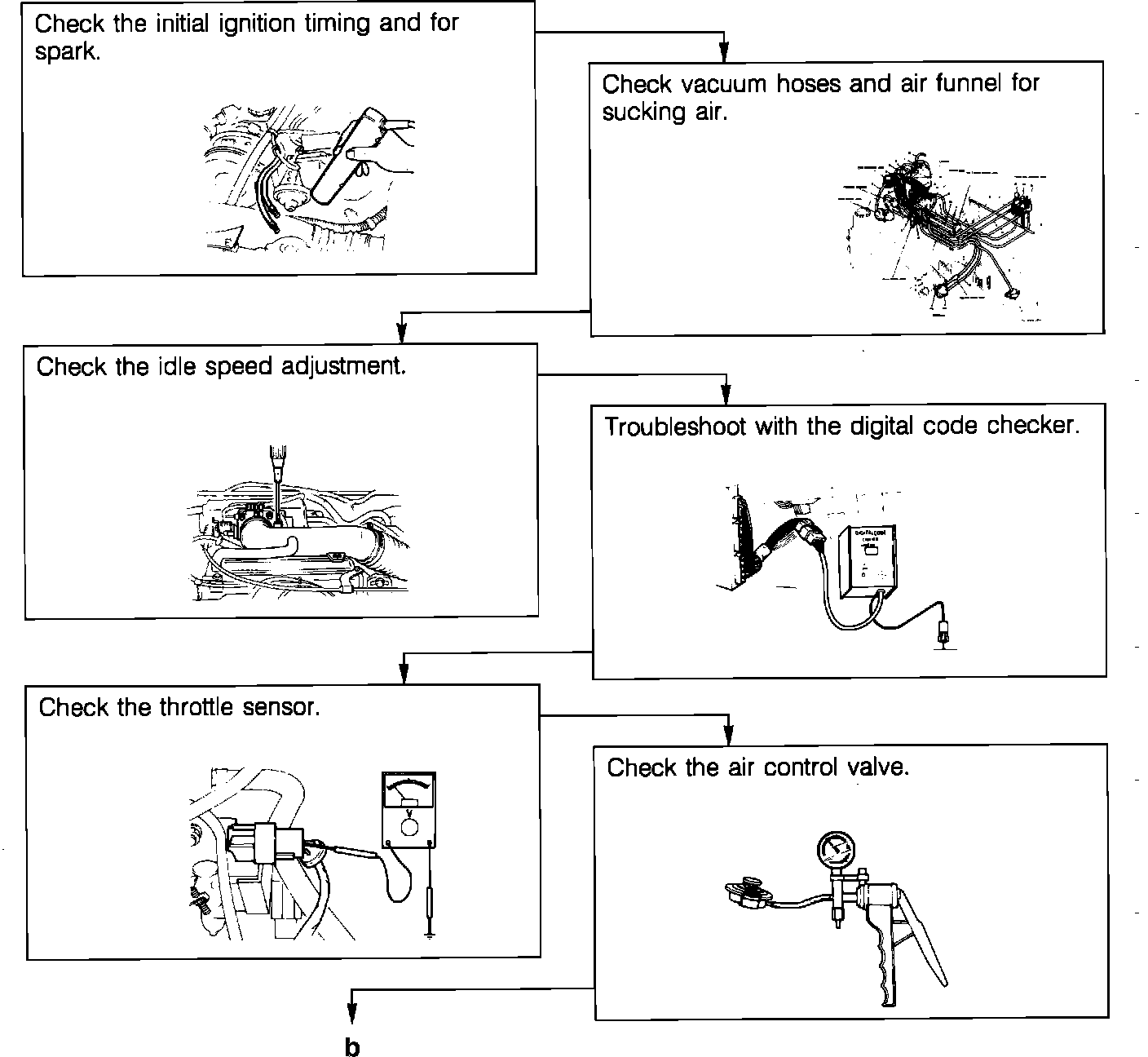

Fig. 31b Afterburn Or Dieseling (Run On):
