Vacuum Delay Valve: Locations

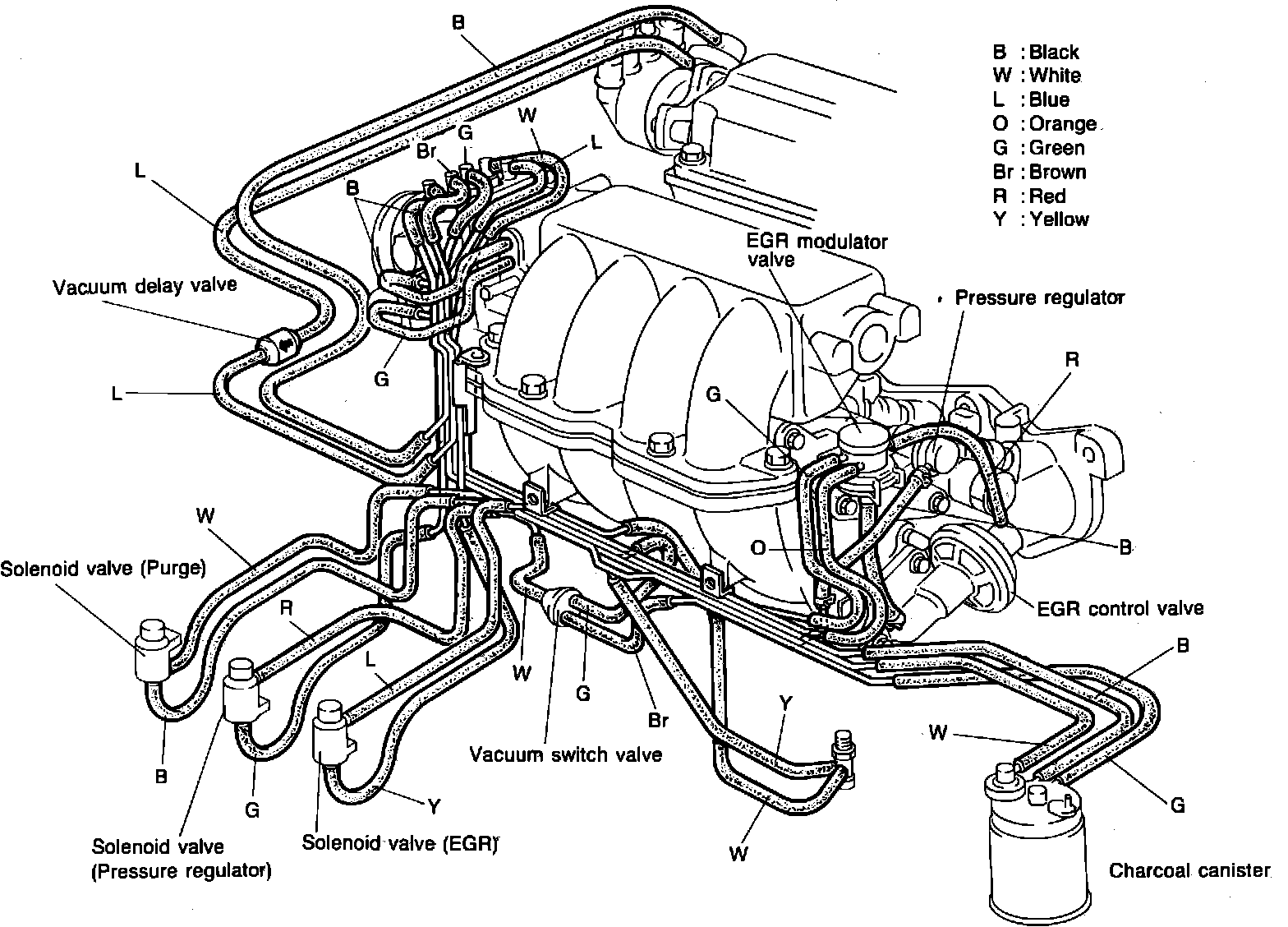

Vacuum operated components.:




Right Of Engine

Applicable to: 1988 626 & MX-6 Non-Turbo
