Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

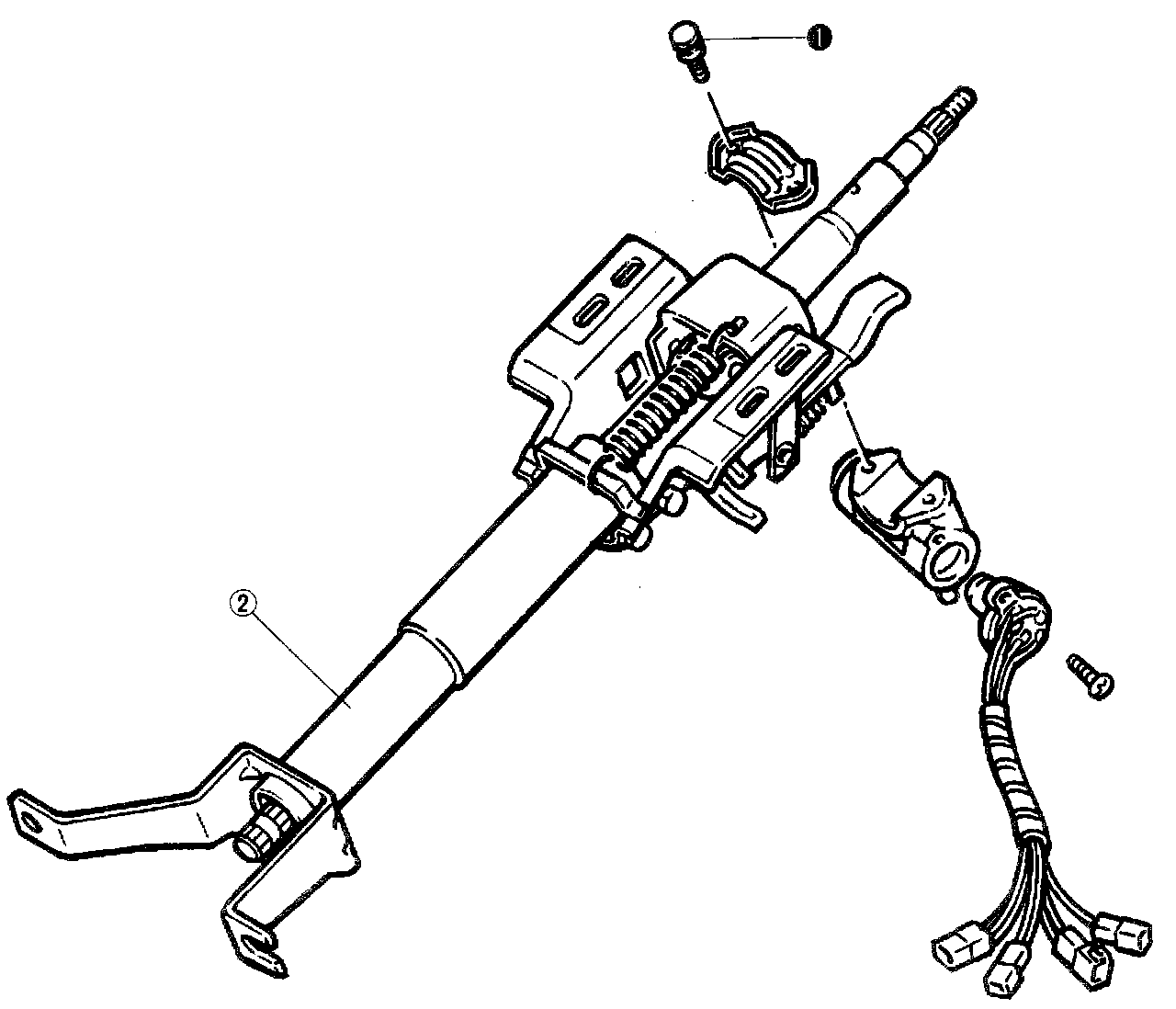

1. Disassemble in the sequence shown in the figure referring to the disassembly note for specially marked pants.
2. Assemble in the reverse order of removal, referring to the assembly note.







Disassembly Note Steering lock

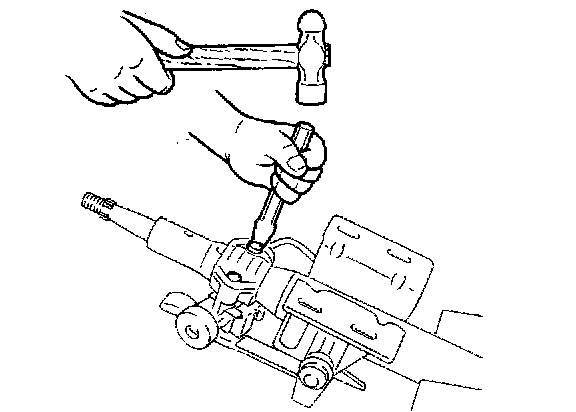

Use a chisel to make a groove in the head of the steering lock installation screws. Remove the screws with a screwdriver; then remove the steering lock.






Assembly Note Steering lock

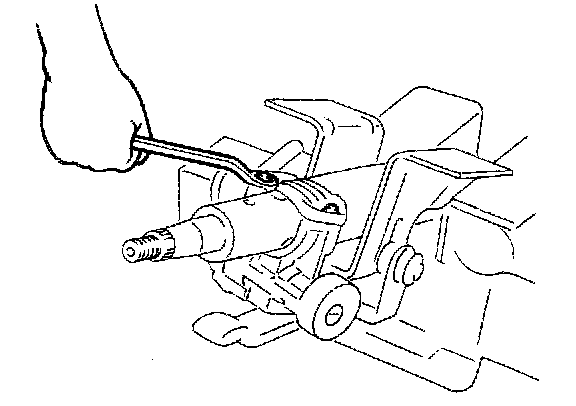

Install the steering lock on the jacket; then use new steering lock mounting screws, and tighten them until the heads break off.


Caution: Check the operation of the lock while tightening the steering lock mounting screws.

INSPECTION

Check the following and replace any faulty parts.


Shaft

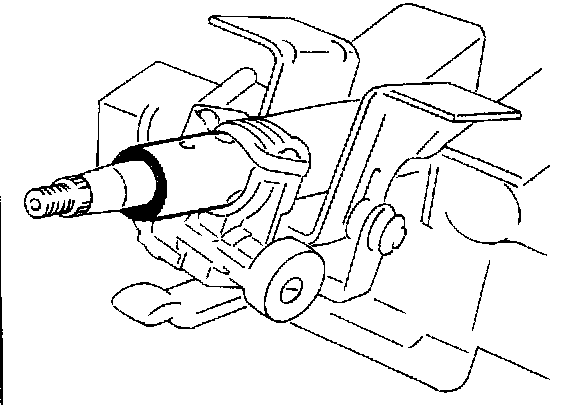

1. Wear of column bushing






2. Length of steering column

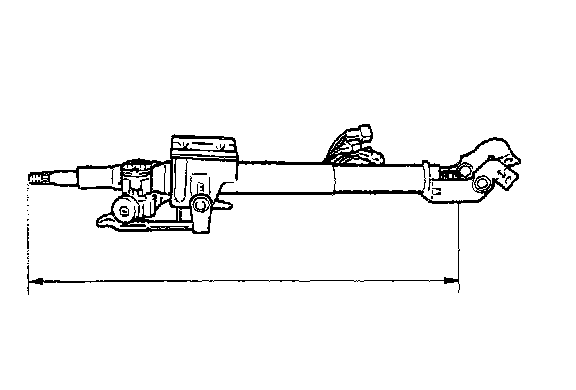

Length: 614-616 mm (24.2-24.3 in)

3. Damage of column

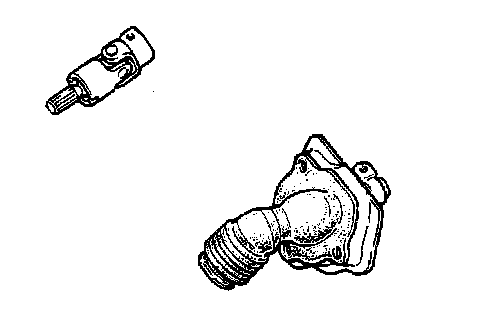

Intermediate Shaft and Universal Joint
Looseness, abnormal noise, or sticking while rotating






Dust Boot
Damage or deterioration
