Airflow Mode Control Door Actuator

Airflow Mode Control Door Actuator Inspection







1. Remove the instrument panel.
2. Disconnect the actuator connector.

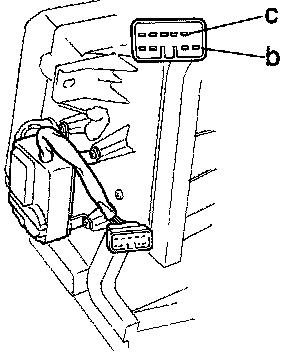

3. Check actuator operation by applying battery voltage.

- If not as specified, replace the actuator.
