Mazda
>>
1990
>>
929 V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

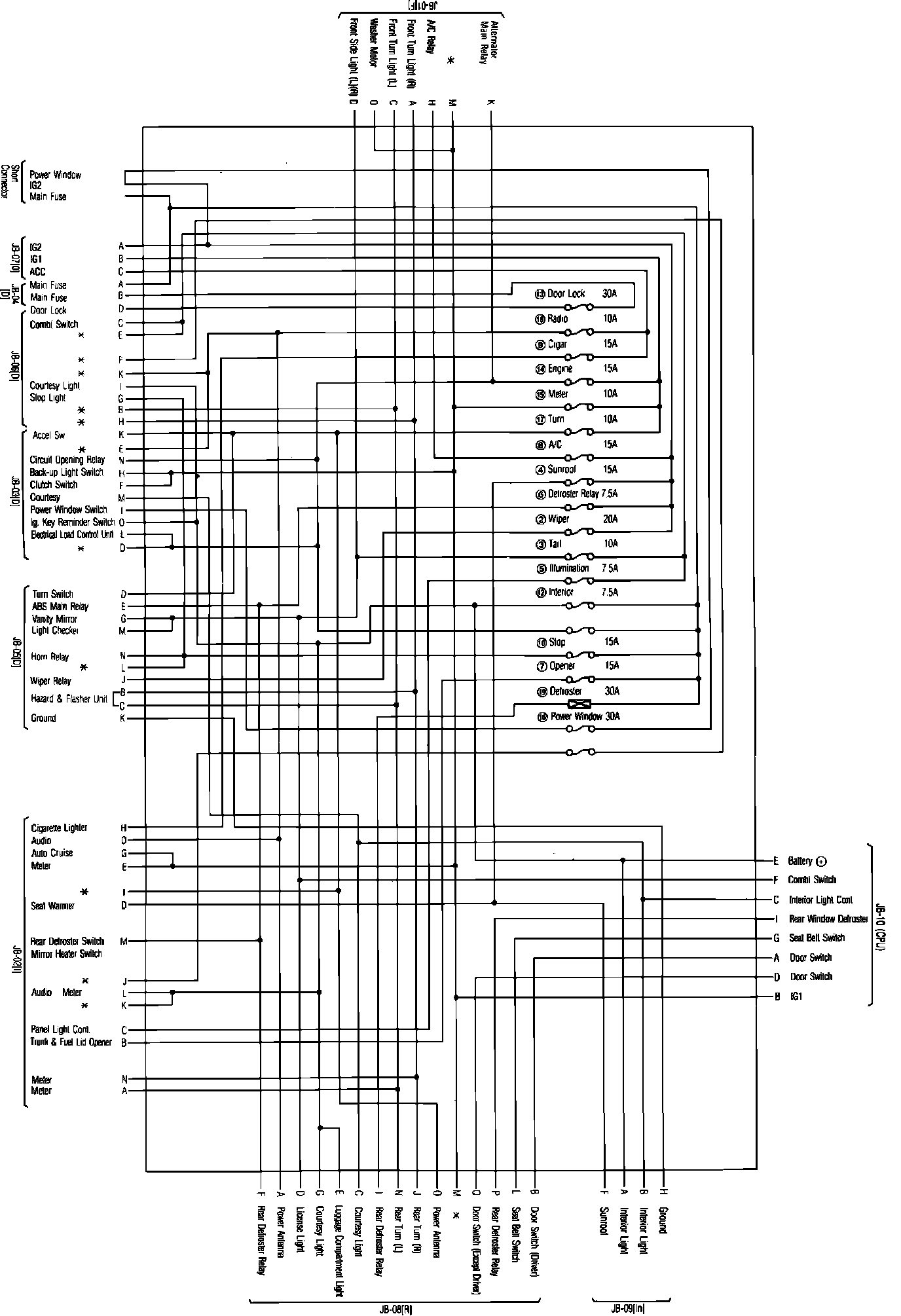

Inter Connection Of Joint Box:
