Cruise Control - Body Electrical Manual Revision

Bulletin No.: 016/93

Issued: 3/19/93

Revised:

Category
Z

Applicable Model/s
1993 MX-6/626

Subject:
BETM CORRECTIONS

DESCRIPTION

Included is a replacement page for the 1993 MX-6/626 Body Electrical Troubleshooting Manual which required corrections for the reason listed below:

1993 MX-6/626

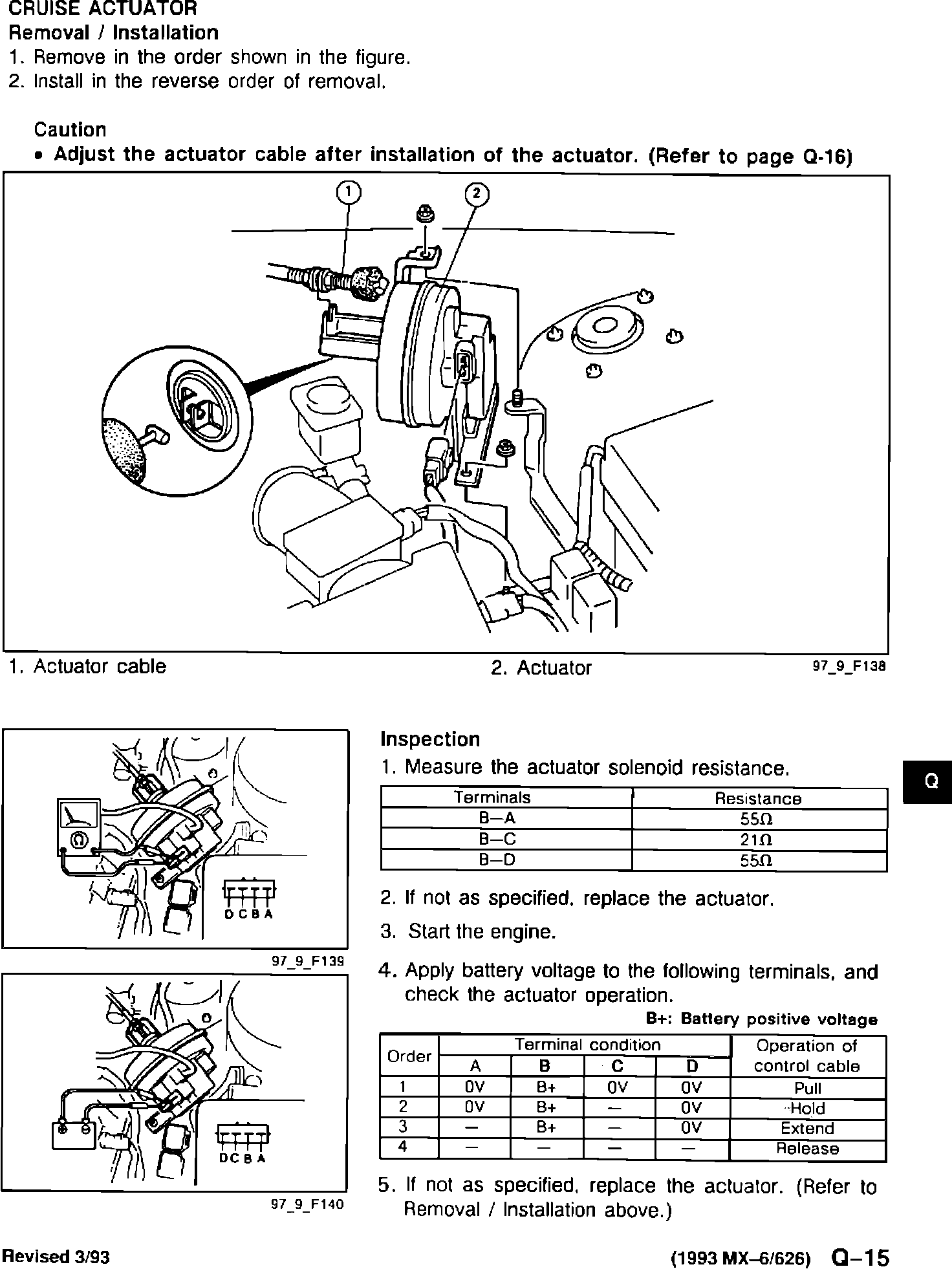

Q-15 - corrected terminal designations - Inspection Steps 3 and 4

Attach replacement page over the old page.

NOTE:

- This bulletin contains a replacement page for one manual. If your dealership has additional manuals in inventory or the service area, replacement pages may be obtained by faxing your requirements to:

MAZDA MOTOR OF AMERICA, INC.
SUPPORT SERVICES DEPT.
ATTN: SERVICE PUBLICATIONS COORDINATOR
FAX #: (714) 454-7010

List the correction bulletin number, category and quantity required. A limited supply of replacement pages are on hand. Orders will be filled on a first come, first serve basis. Allow 5 working days for delivery.

- Reproductions of the manual will be updated prior to printing. Manuals purchased from cuffent inventory at Helm, Inc. will be supplied with the applicable replacement pages.
