Removal/Installation

REMOVAL and INSTALLATION
1. Disconnect the negative battery cable.
2. Drain the engine oil.

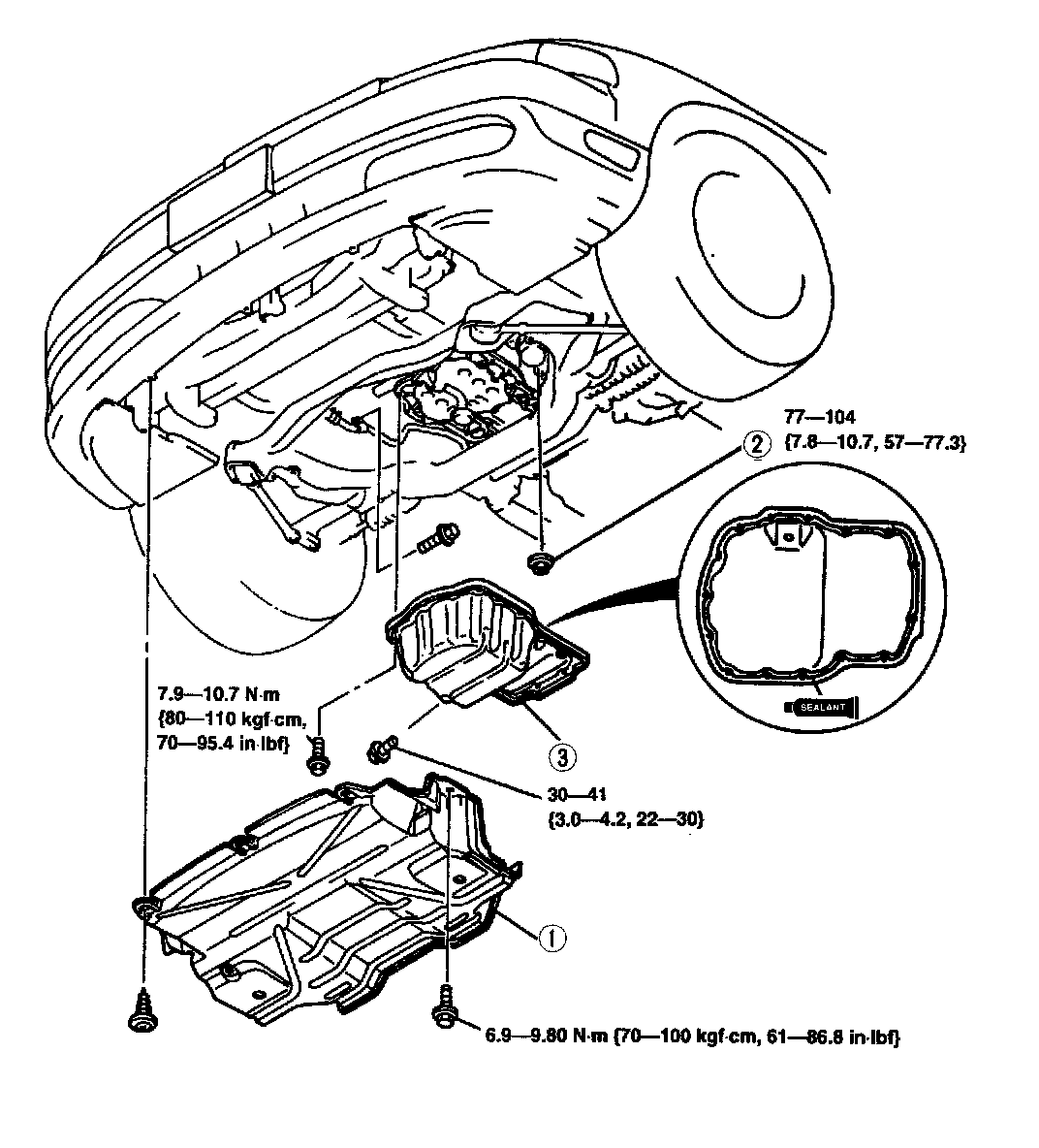

3. Remove in the order shown in the image, referring to Removal Note.
4. Install in the reverse order of removal, referring to Installation Note.





1. Splash shield
2. Engine mount nuts
3. Oil pan





Removal Note
Oil pan

Caution: Pry tools can easily scratch the oil pan upper block and oil pan contact surfaces. Prying oft the oil pan can also easily bend the oil pan flange.

1. Remove the oil pan mounting bolts.

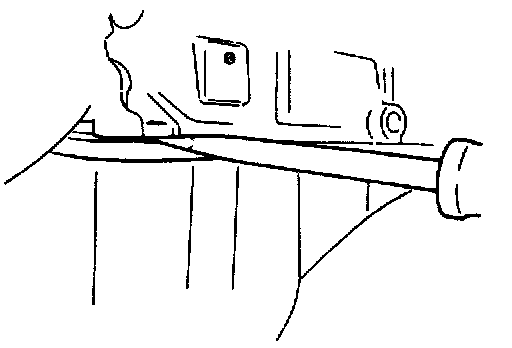

2. Insert a screwdriver between the oil pan upper block and oil pan, and pry them apart.
3. Remove the oil pan.






Installation Note
Oil pan

Caution

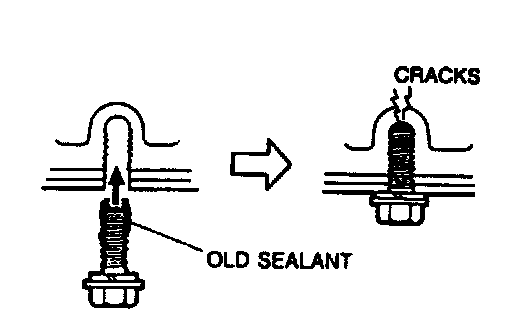

^ If the bolts are reused, remove the old sealant from the bolt threads. Tightening a bolt that has old sealant on it can cause thread damage.

1. Remove all foreign material from the contact surfaces.

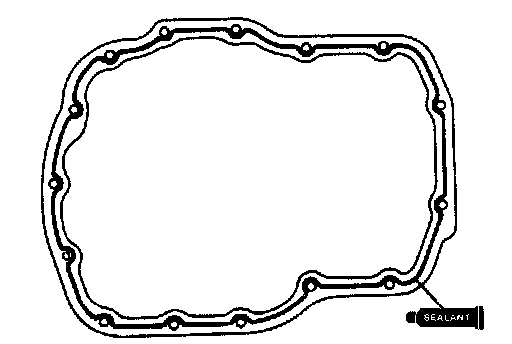

2. Apply silicone sealant to the oil pan as shown.
3. Install the oil pan within five minutes of applying the sealant.

Tightening torque:
7.9-10.7 Nm (80-110 kgf.cm, 70-95.4 in.lbf)

Steps After Installation
1. Fill with the specified amount and type of engine oil.
2. Start the engine and check for leaks.
3. Check the oil level and add oil if necessary.
