Variable Induction System: Testing and Inspection

VRIS System Testing:

1. Start engine and run at idle.
2. Connect tachometer.

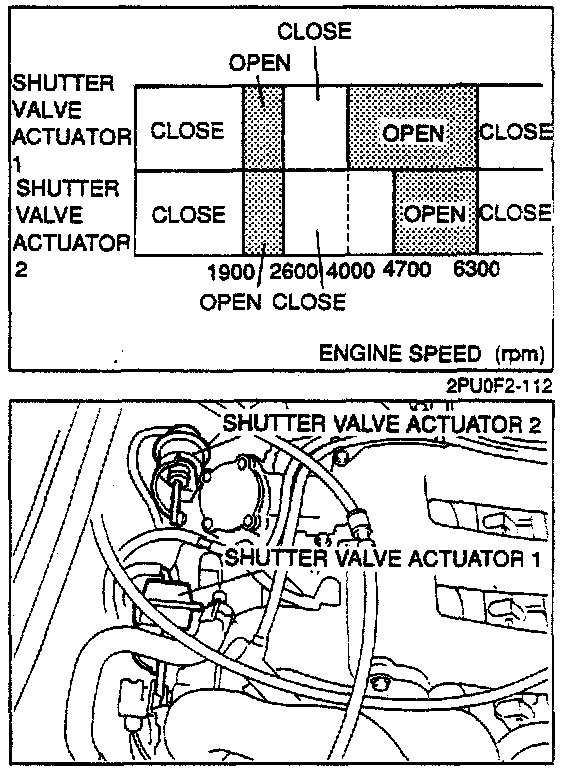

3. Open throttle and verify that rod is pulled into shutter valve actuators 1 and 2 at engine speed specified on chart.
