Rear Knuckle Alignment Link: Service and Repair

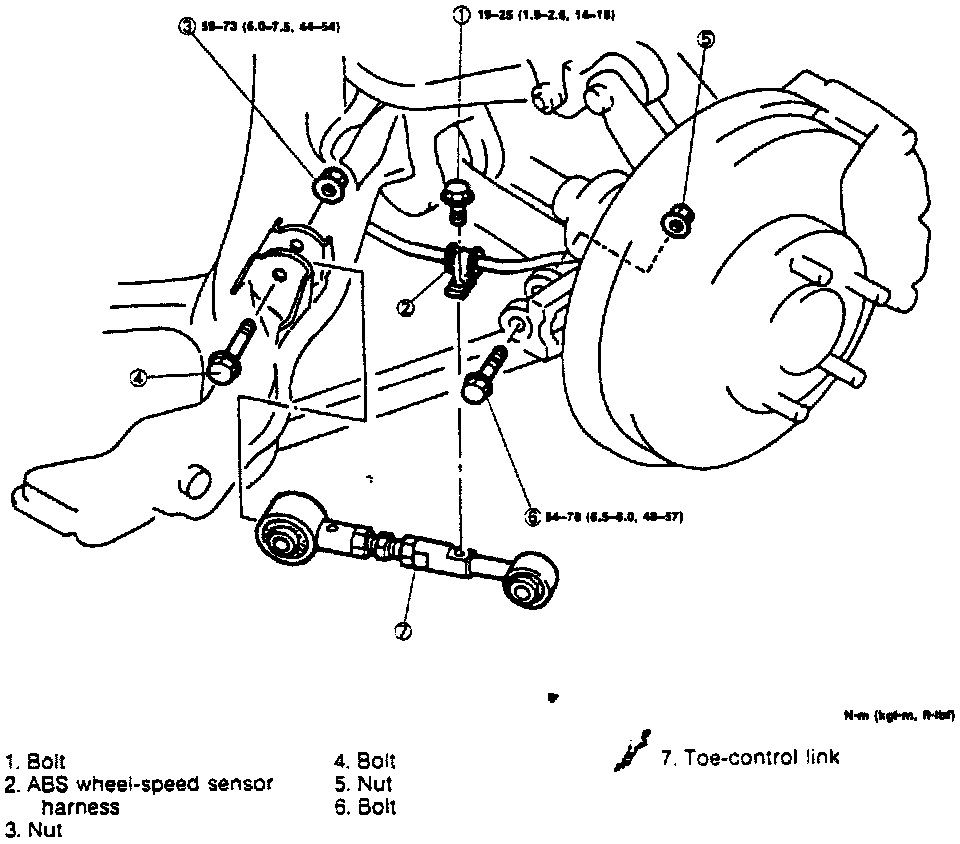

Fig. 16, Exploded View Of Toe-Control Link:

1. Raise and support rear of vehicle, then remove wheel and tire assembly.
2. Remove components in the order shown in Fig. 16.
3. Install in the reverse order of removal, noting the following:
a. Install toe-control link with the paint mark facing upward.
b. Check rear wheel alignment after repairs have been completed.
