Home >> Mazda >> 1994 >> MX-3 V6-1844cc 1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Clock

Clock

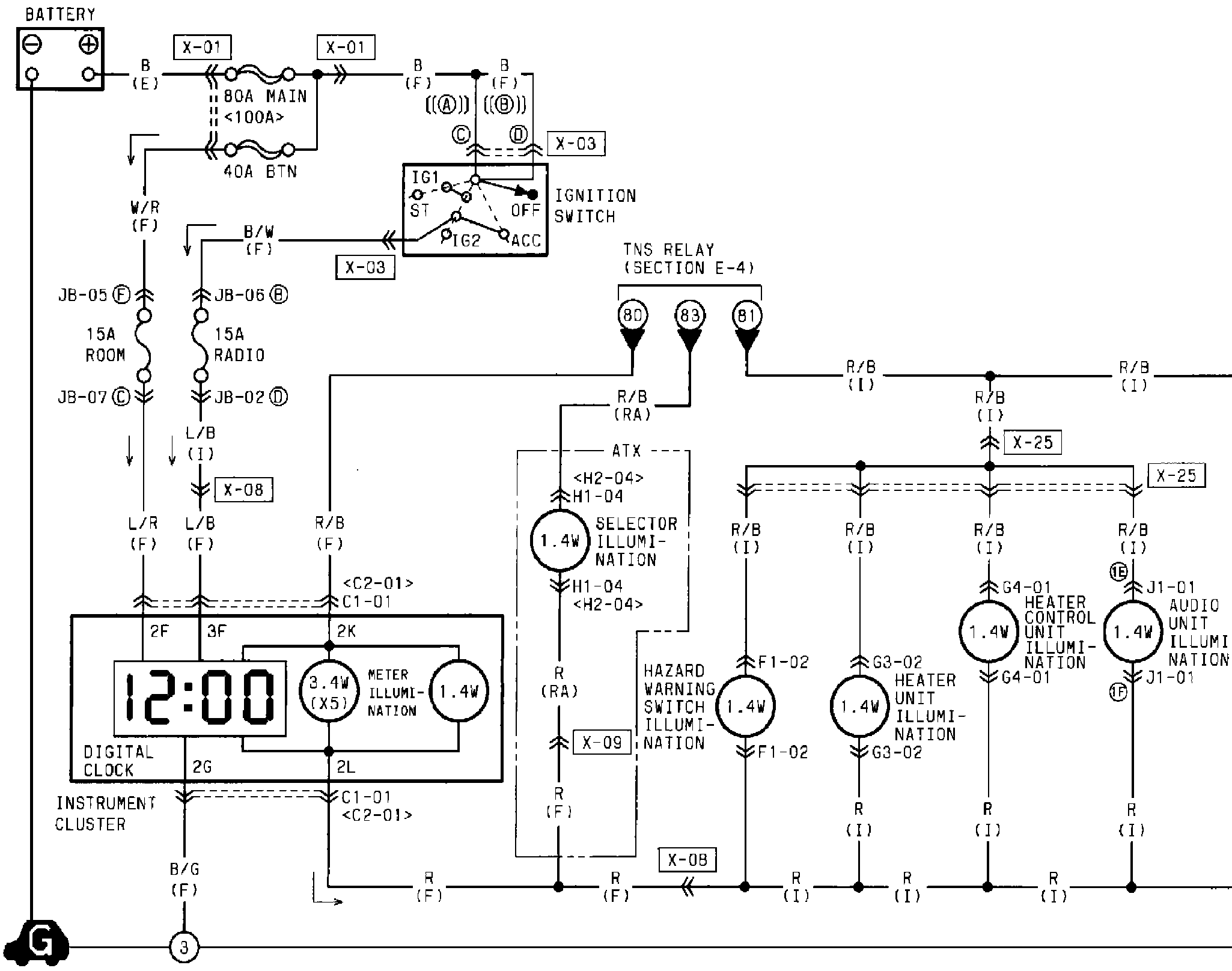

�rIllumination Lights-Digital Clock:
