Variable Induction Check Valve: Testing and Inspection

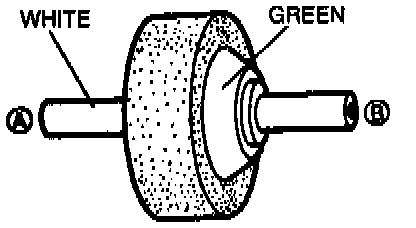

Variable Resonance Induction System (VRIS) Check Valve:

1. Remove check valve.
2. Blow through A and verify that air DOES flow from B.
3. Blow through B and verify that air DOES NOT flow from A.
4. If not as specified, replace valve.
