Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1994
>>
MX-6 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
>>
Condenser, Ignition
Condenser, Ignition

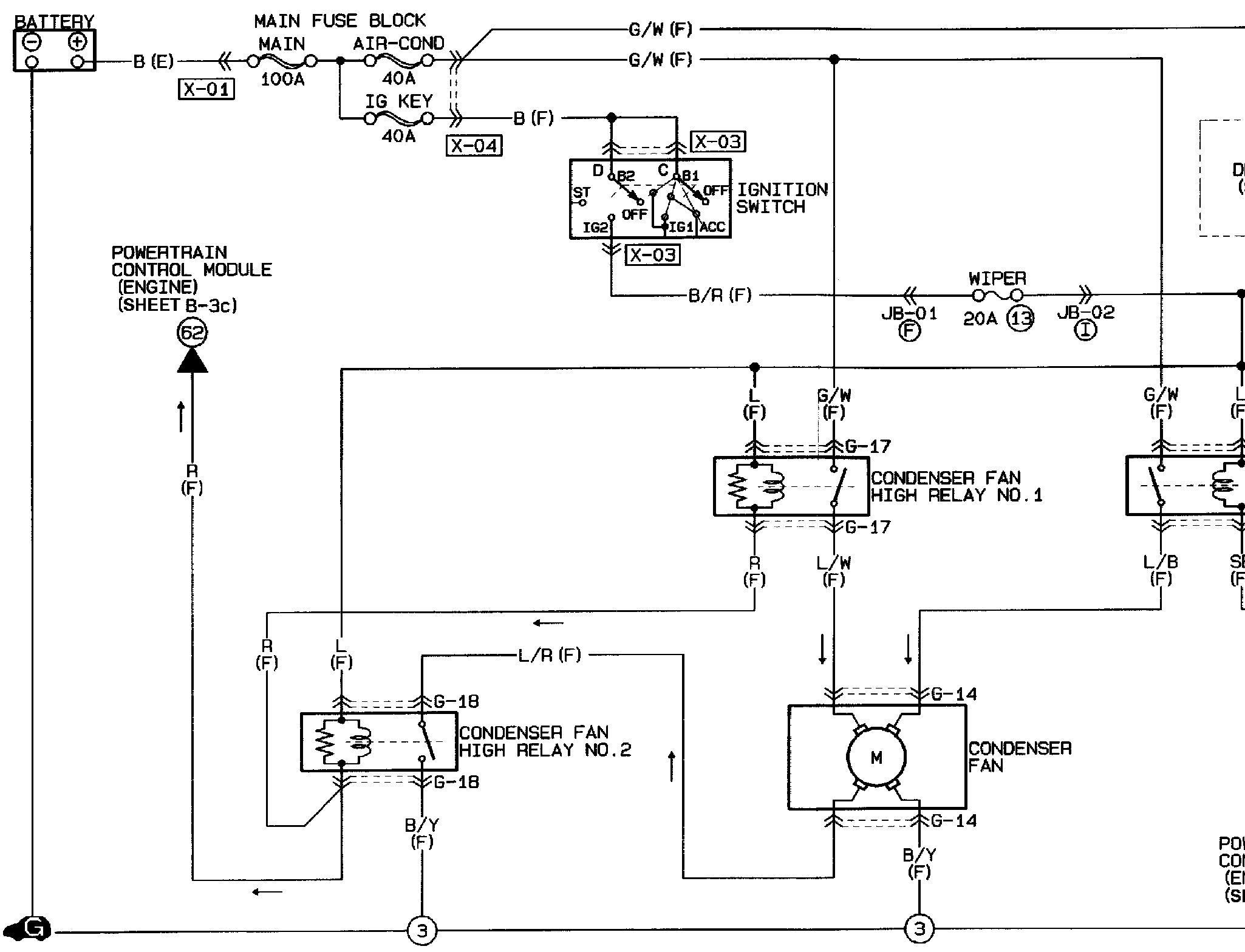

��CCondenser Fan System:
