Valve Body: Testing and Inspection

INSPECTION
1. On level ground, jack up the vehicle and support it evenly on safety stands.




2. Disconnect the solenoid valve connector.

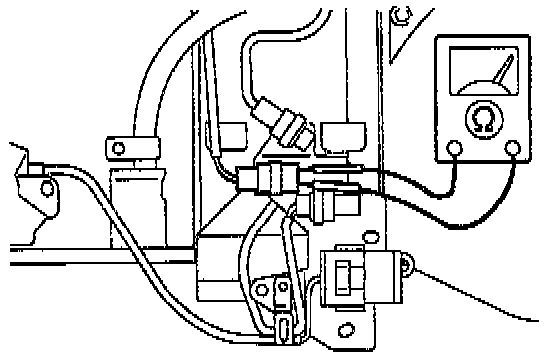

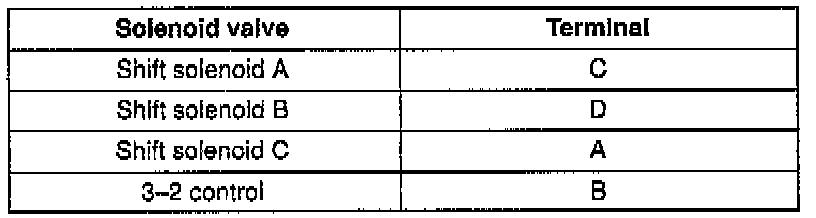

3. Measure resistance between each terminal and ground.




Resistance: 13-27 Ohms

4. If not correct, check the wiring harness for an open or short circuit. Replace the solenoid valve.
