Home >> Mazda >> 1995 >> MX-6 L4-1991cc 2.0L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Common Connector List >> X-05

X-05

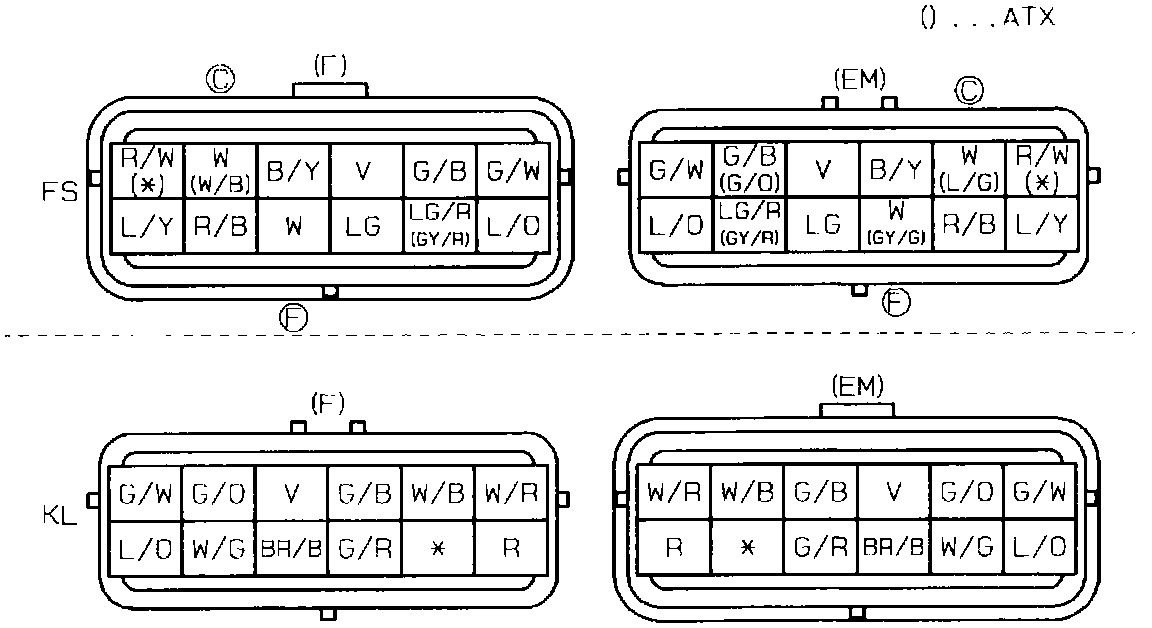

X-05 Front (F) -Emission (EM):
