Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1995
>>
MX-6 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>

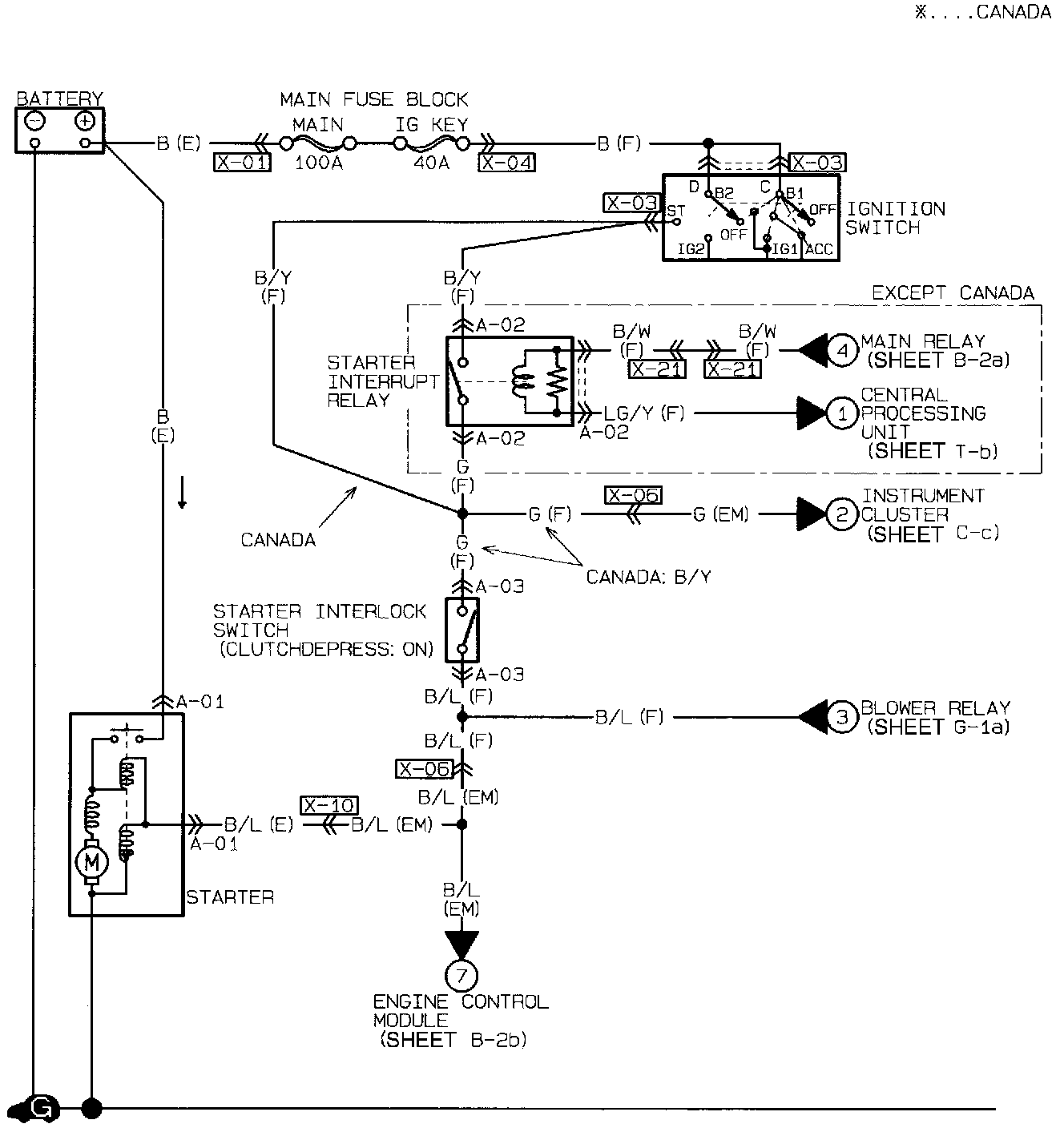

MTX Starting System
MTX Starting System
MTX Starting System:
