Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1996
>>
MX-6 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
ATX
ATX

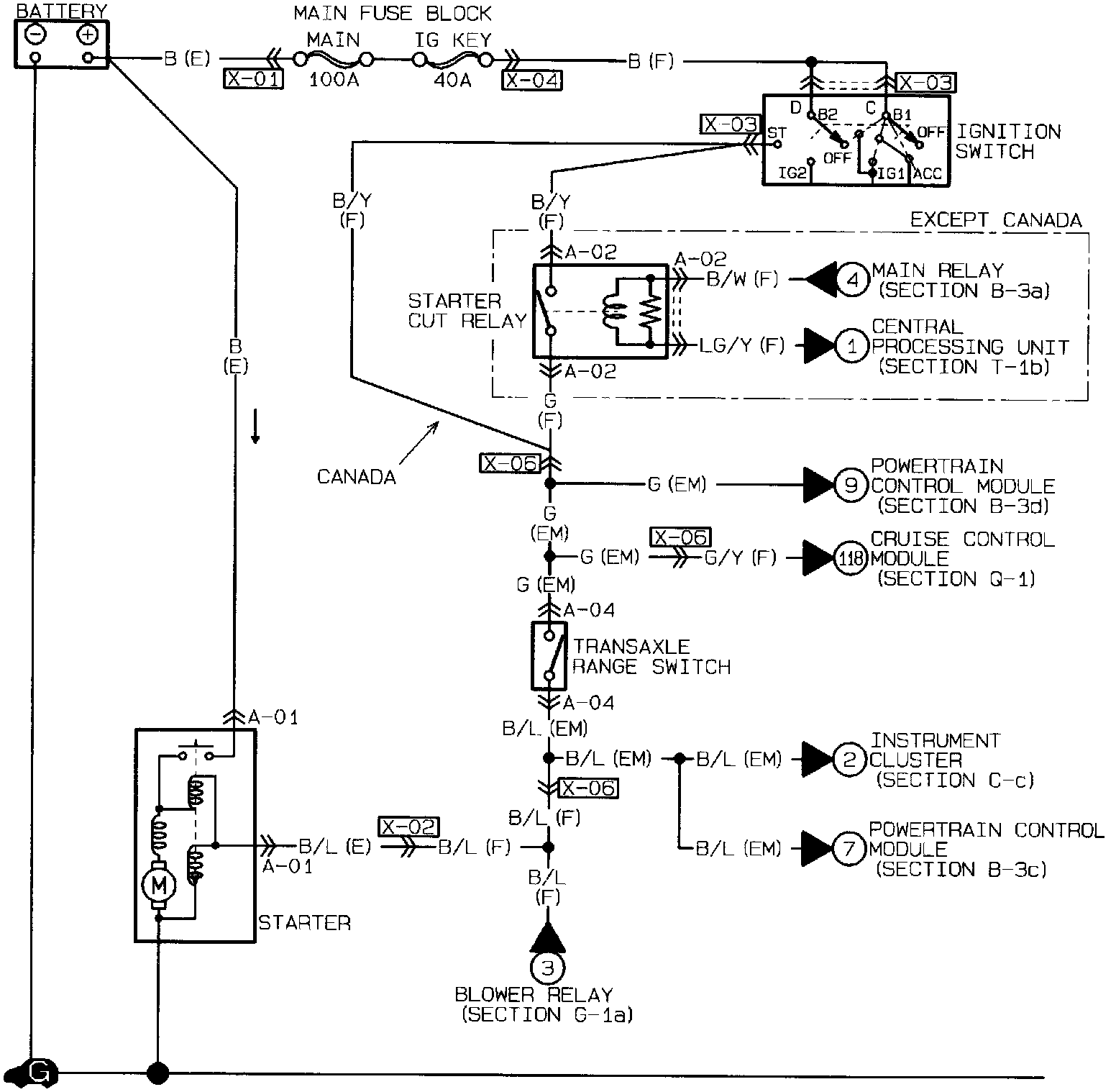

ATX Starting System:
