Front Lift Motor

Inspection
1. Remove the front seat.
2. Disconnect the front-lift motor connector.

Terminal Identification:

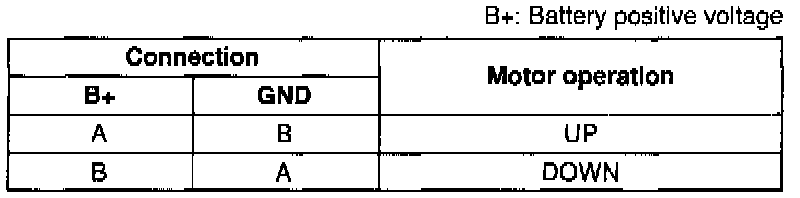

Reference:

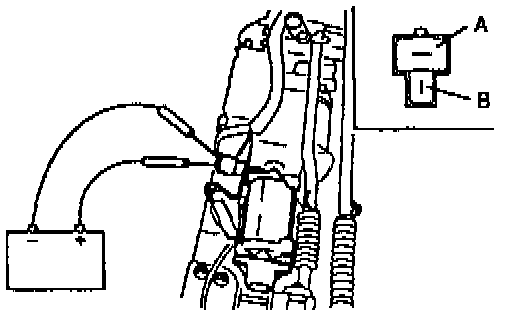

3. Apply battery positive voltage to the motor terminals as indicated and check the operation of the front-lift motor.
