Slide Motor

Inspection
1. Remove the front seat.
2. Disconnect the slide motor connector

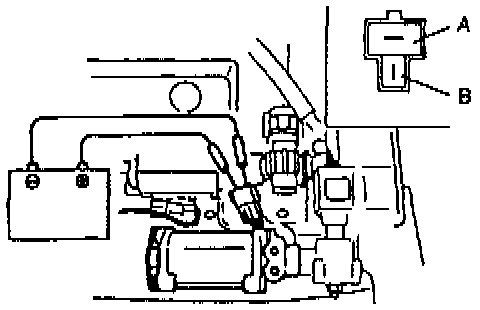

Terminal Identification:

Reference:

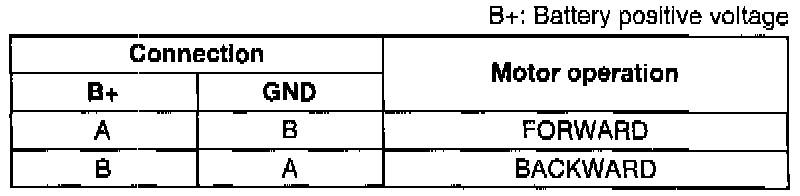

3. Apply battery positive voltage to the motor terminals as indicated below and check the operation of the slide motor.
4. If not as specified, replace the slide motor.
