Installation

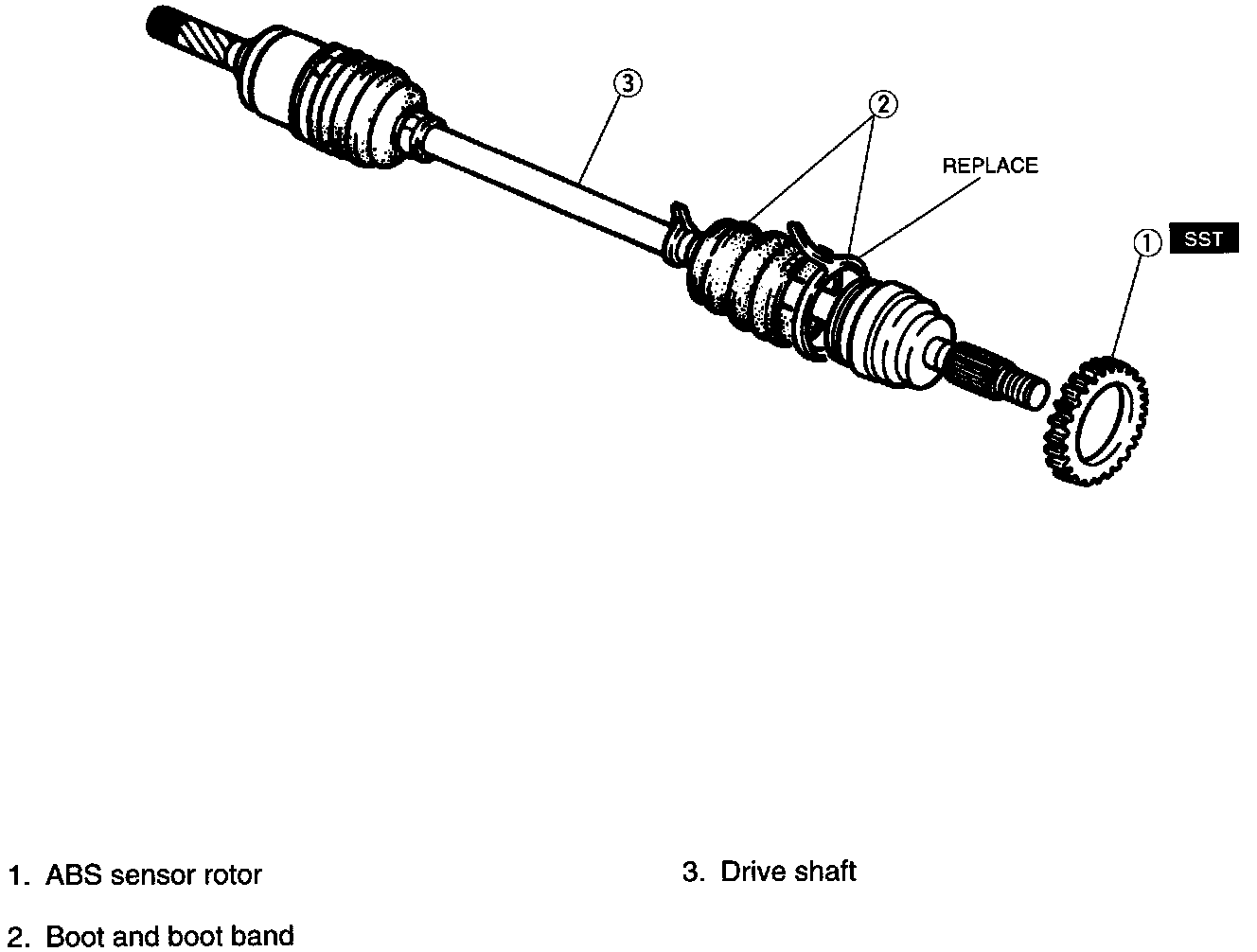

Install in the order shown in the figure.

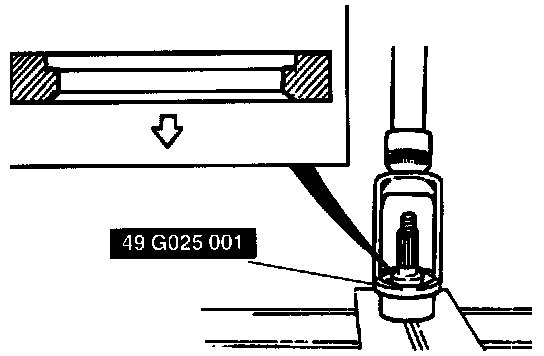

NOTE: Set a new ABS sensor rotor on the drive shaft in the direction shown and press it onto the shaft assembly by using the special service tool.
