Rear

1. Disassemble in the order shown in the figure.





a. Turn the adjustment gear clockwise with an Allen wrench to remove the piston from the adjustment gear. (Turn the adjustment gear until it becomes easy to turn.)

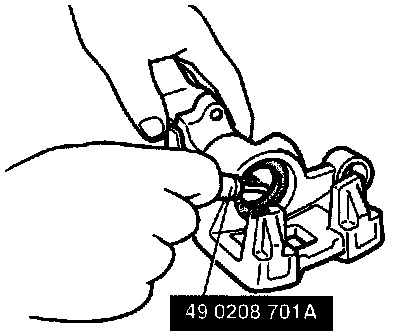

b. Remove the piston seal from the caliper by using the special service tool.

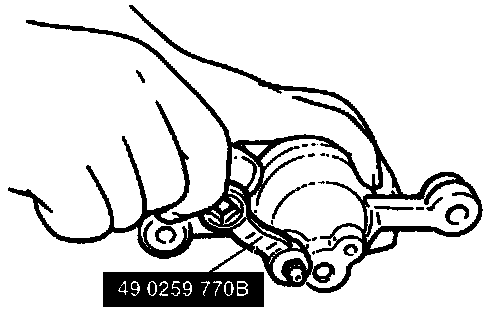

c. Loosen the bleeder screw by using the special service tool.
2. Inspect all parts and repair or replace as necessary.
3. Assemble in the reverse order of disassembly.





a. Tighten the bleeder screw by using the special service tool to 5.9-8.8 Nm (53-78 inch lbs.).





b. Insert the piston into the caliper and turn the adjustment gear counterclockwise with an Allen wrench to pull the piston inward (turn until it stops).
