Condenser Fan Motor Test

Inspection
KL engine

Battery Connection:

Reference:

1. Disconnect the condenser fan connector.

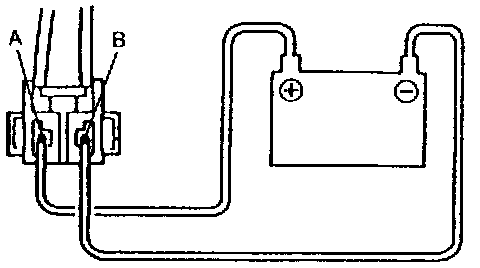

2. Connect battery positive voltage and check the condenser fan operation.

FS engine





1. Disconnect the condenser fan connector.

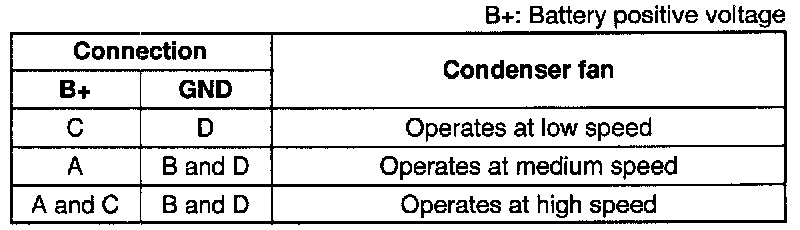

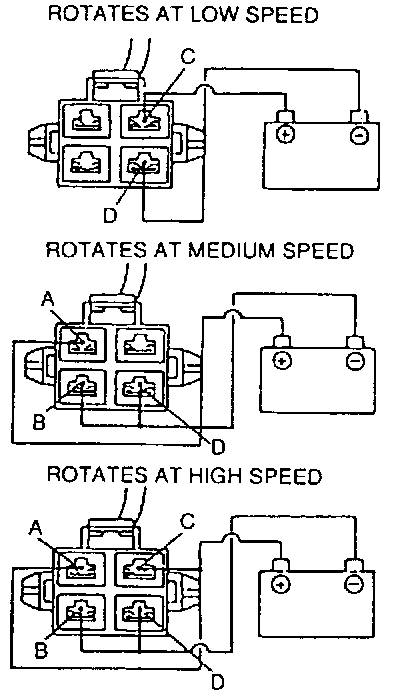

2. Connect battery positive voltage to the condenser fan as shown and verify that the condenser fan operates.
3. If the condenser fan does not operate or the operating speed is too low, replace the condenser fan.
