Disassembly and Assembly

Disassembly / Assembly

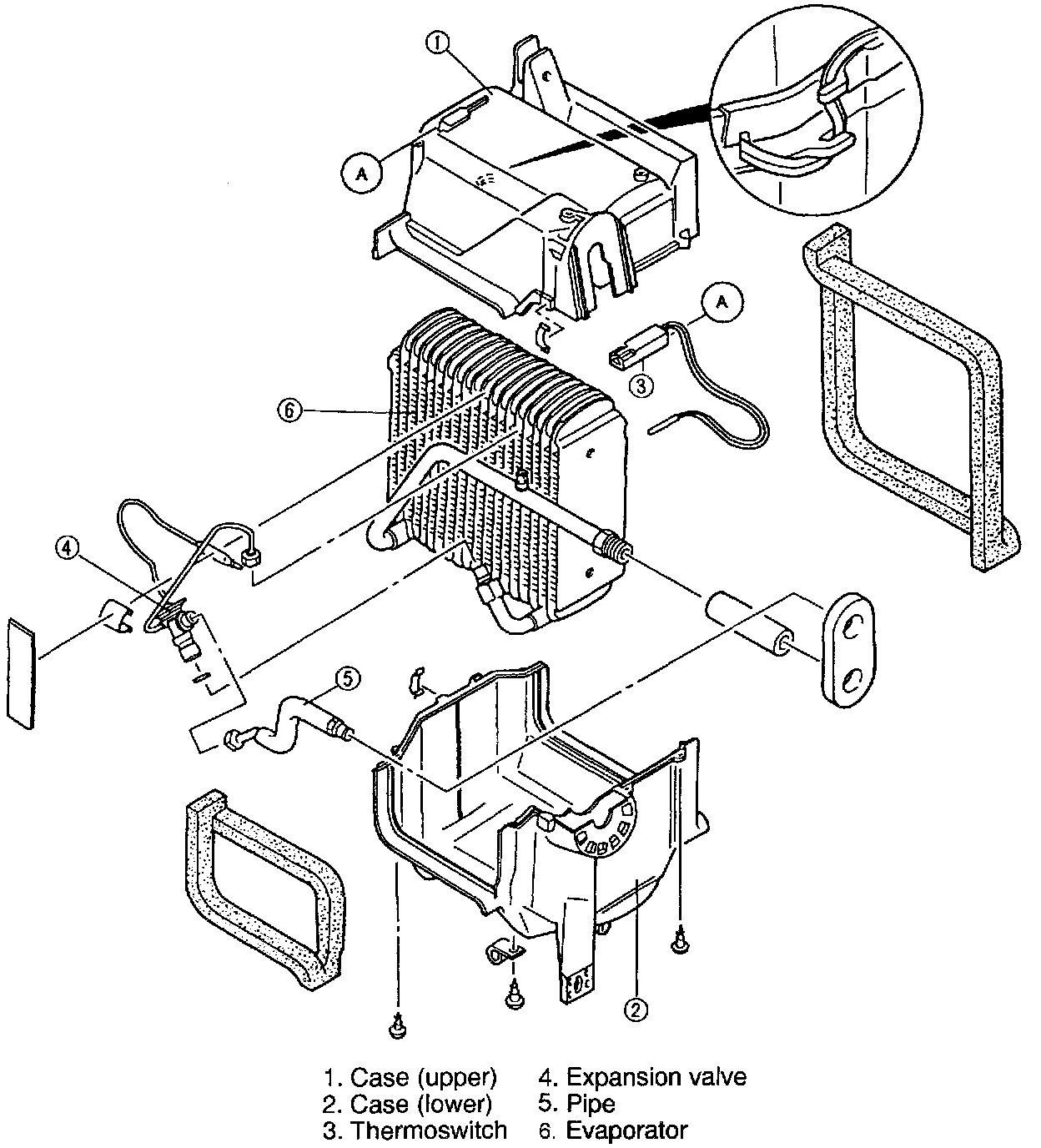

1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly, referring to Assembly note. Apply compressor oil before connecting the fittings.





Assembly note
Expansion valve
Replace the 0-ring of the expansion valve connector. Install the heat-sensing tube in the position shown in the figure.
