Removal and Installation

Removal/Installation





1. Drain the engine coolant.
2. Remove the dashboard.
3. Remove the cooling unit.

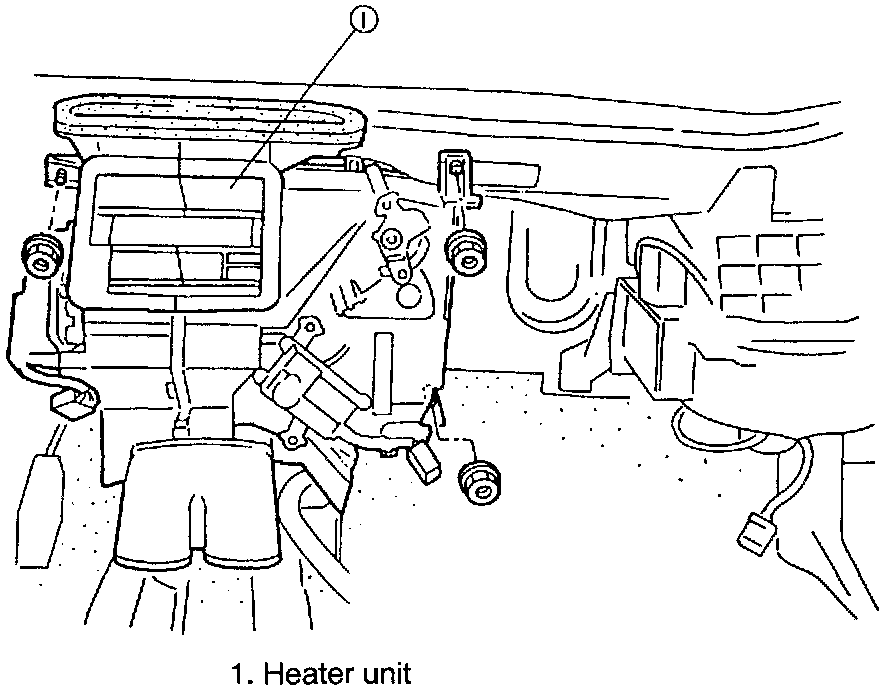

4. Remove as shown in the figure.
5. Install in the reverse order of removal.
