Pinpoint Test 2

Flowchart No.2 Symptom License plate light does not illuminate

Possible cause
^ Burnt light bulb
^ Open or short circuit in wiring harness
^ Poor connection of connector

Bulb Inspection:

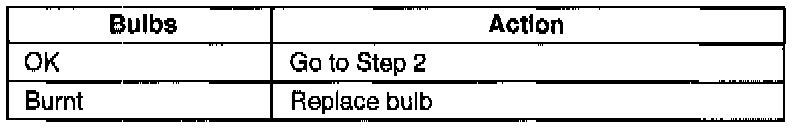

Action Chart:

Step 1
Remove and check the license plate light bulb.

Step 2
1. Turn the headlight switch on (first position).

Terminal Identification:

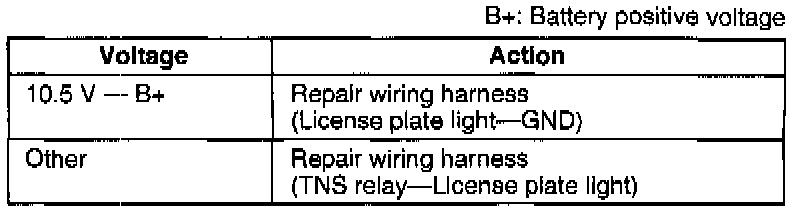

Action Chart:

2. Measure the voltage at terminal A(O) of the license plate light connector.
