Vanity Lamp: Testing and Inspection

Inspection





1. Remove the sunvisor.
2. Disconnect the vanity mirror illumination connector.

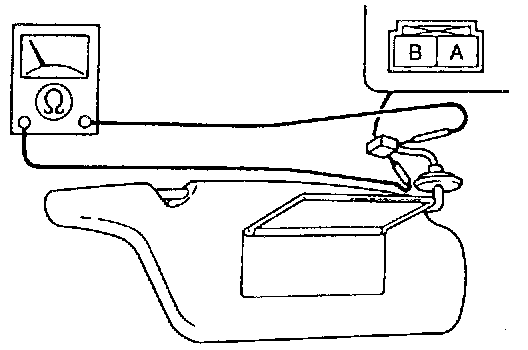

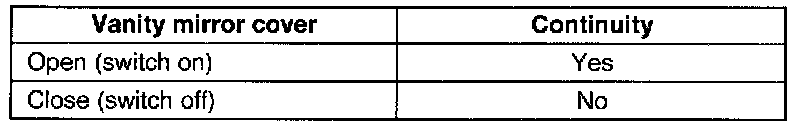

3. Check for continuity between terminals A and B of the vanity mirror illumination switch.
4. If not as specified, replace the sunvisor.
