Multiple Junction Connector
Multiple Junction Connector

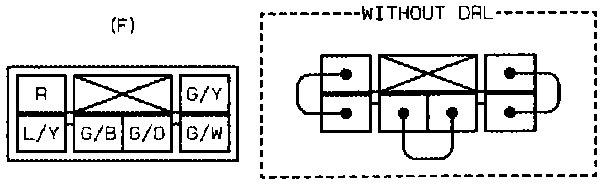

X-32 Joint Connector (F):

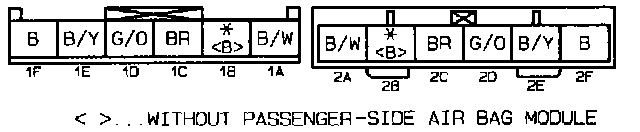

X-33 Joint Connector (F):

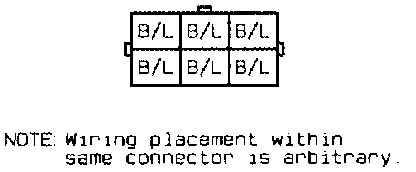

X-34 Joint Connector (F):

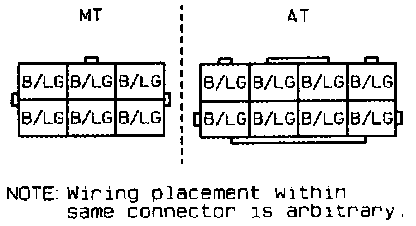

X-35 Joint Connector (F):
