Home >> Mazda >> 1997 >> MX-5 Miata L4-1.8L DOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Planetary Gears, A/T >> Connecting Shell and Front Planetary Gear Unit

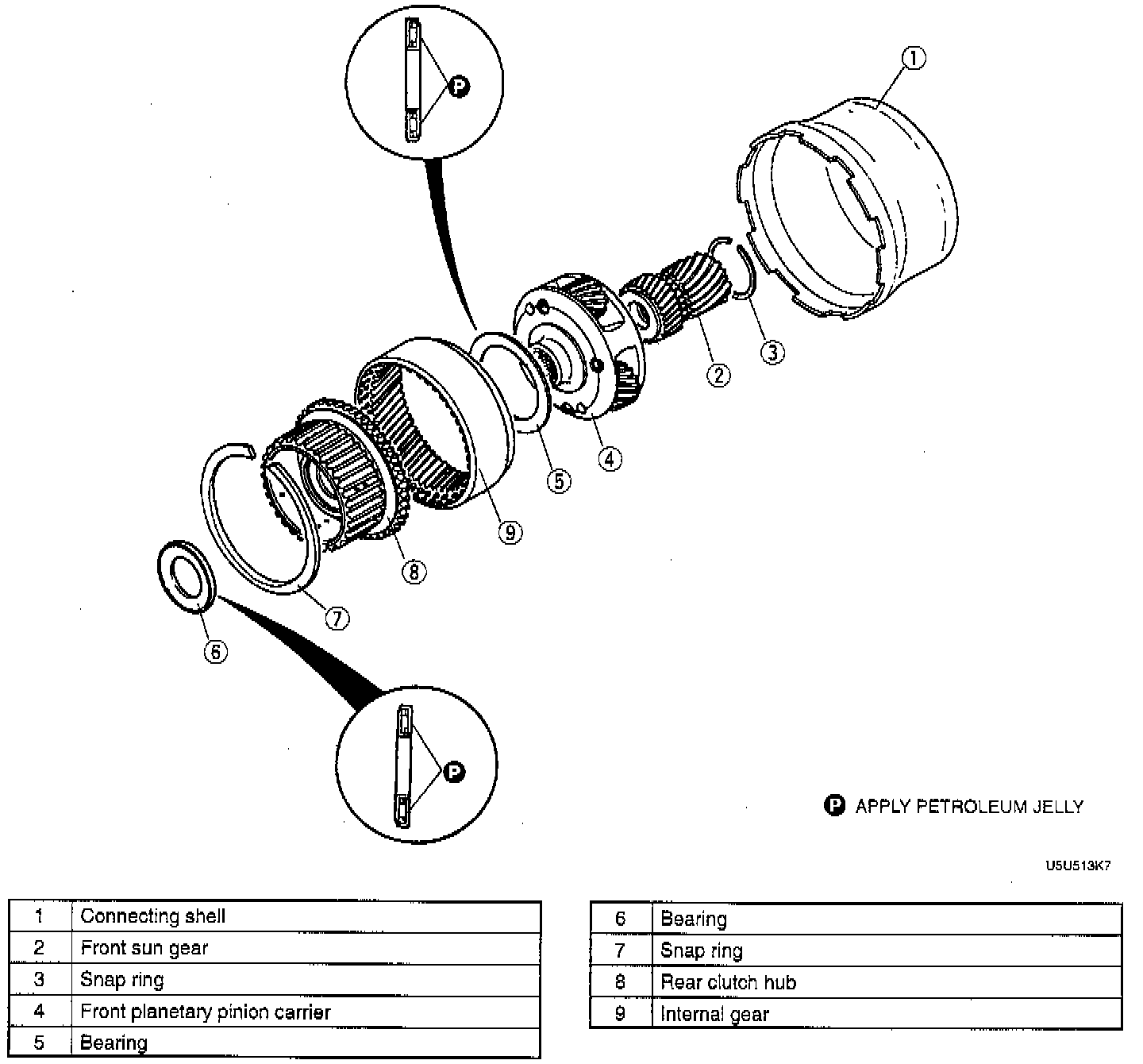

Connecting Shell and Front Planetary Gear Unit
