Fluid - Differential: Testing and Inspection

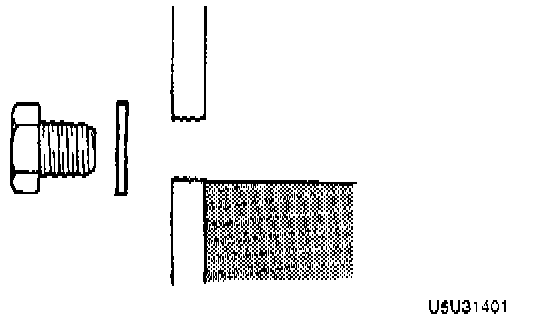

1. Remove the filler plug.
2. Verify that the oil is at the bottom of the filler plug hole. If it is low, add the specified oil.
3. Install the filler plug and tighten to 39 - 53 Nm (29 - 39 ft. lbs.).
1. Remove the filler plug.
2. Verify that the oil is at the bottom of the filler plug hole. If it is low, add the specified oil.
3. Install the filler plug and tighten to 39 - 53 Nm (29 - 39 ft. lbs.).
