Washer Fluid Level Switch: Testing and Inspection

Reference:

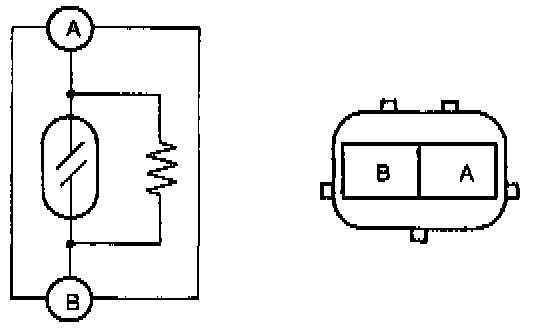

Terminal Identification:

1. Disconnect the washer fluid-level sensor connector.

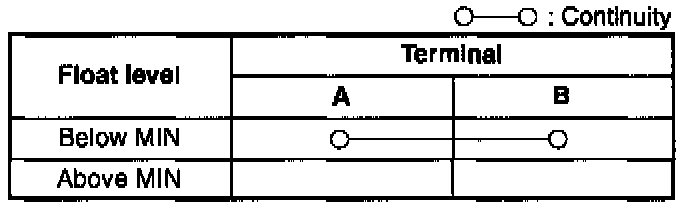

2. Check for continuity between the washer fluid-level sensor terminals by using an ohmmeter.
3. If not as specified, replace the washer fluid-level sensor.
