Front Drive Belt Replacement





REPLACEMENT

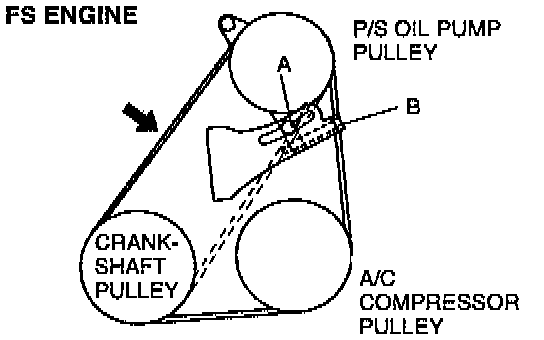

1. Loosen locknut (bolt) A and adjusting bolt B.
2. Remove and replace the drive belt.
3. Adjust the deflection (tension).
