Power Door Lock Actuator: Service and Repair

Removal / Installation
1. Raise the door glass fully.
2. Disconnect the negative battery cable.

Note
^ Remove the door screen carefully so that it may be reused.

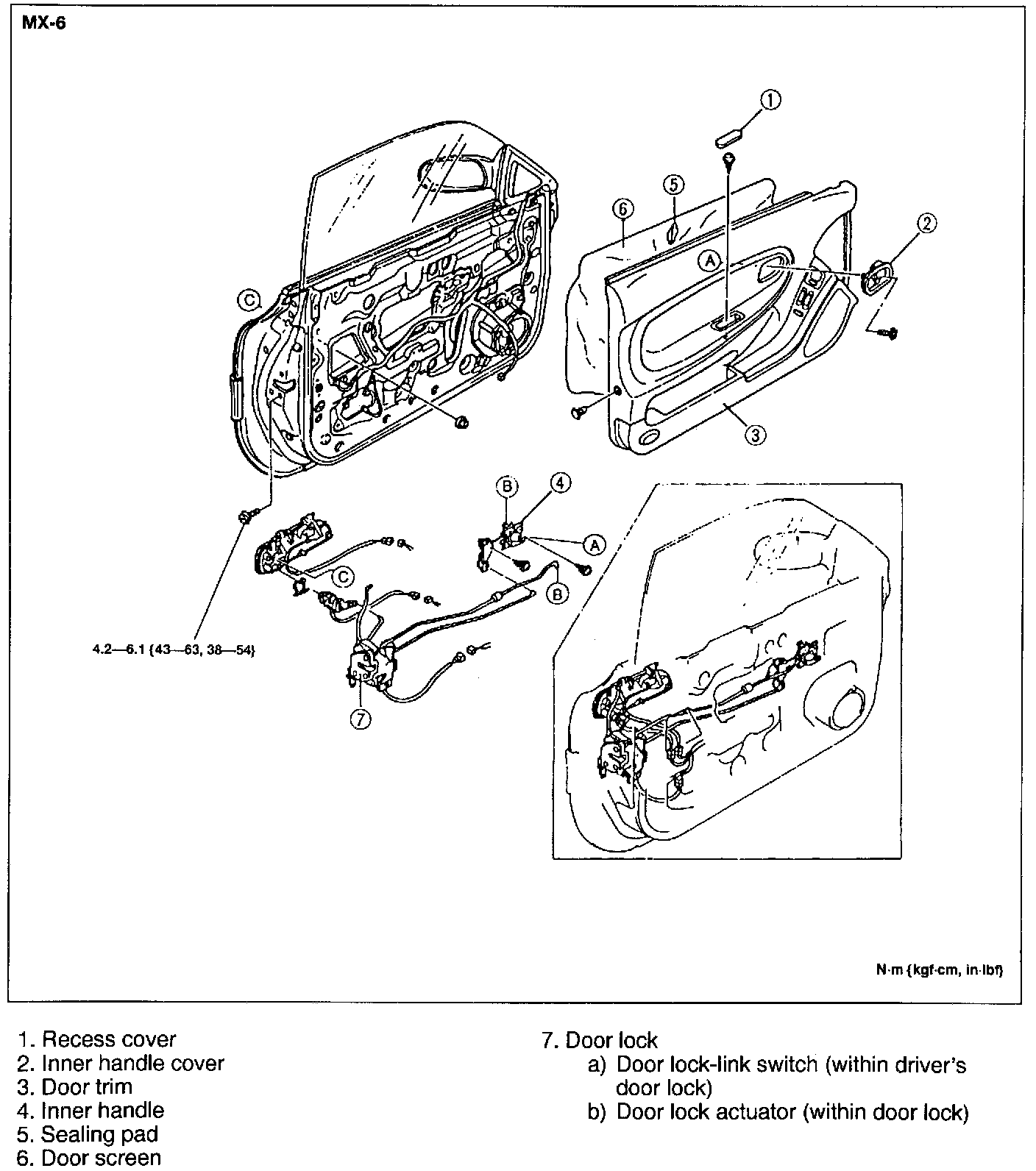

3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
