Front

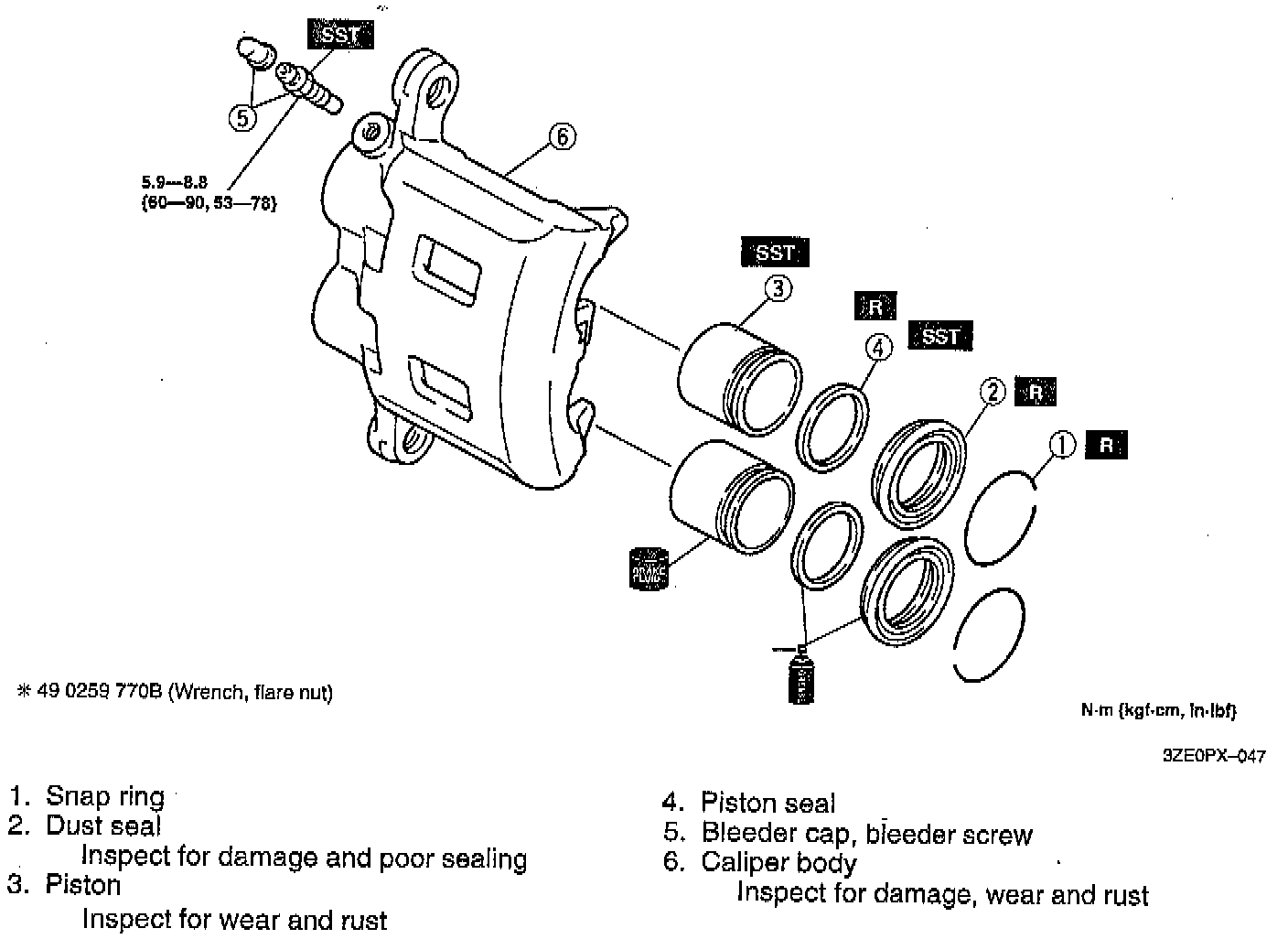

1. Disassemble in the order indicated in the table.








NOTE:
^ Place the special service tool (SST) in the caliper.
^ Gently blow compressed air through the pipe hole to force the piston out of the caliper.
^ Remove the piston seal from the caliper by using the SST.

2. Assemble in the reverse order of disassembly.
