Blower Motor Resistor: Service and Repair

Removal / Installation
1. Remove the undercover, glove compartment, and glove compartment cover.
2. Remove the stay.

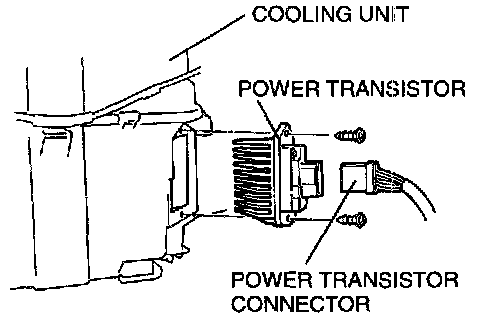

3. Disconnect the power transistor connector.
4. Remove the power transistor.
5. Install in the reverse order of removal.
