Variable Induction Control Valve: Testing and Inspection

VRIS SOLENOID VALVE
1. Remove the solenoid valve.

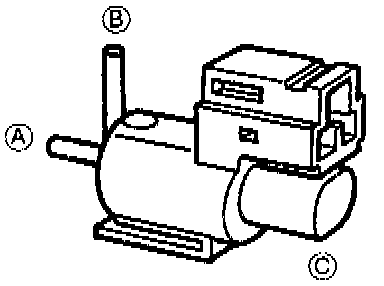

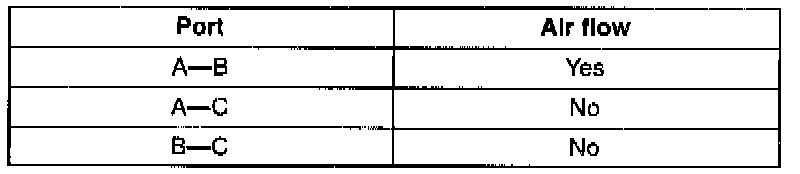

2. Verify that air flows as shown.




3. If not as specified, replace the VRIS solenoid valve.

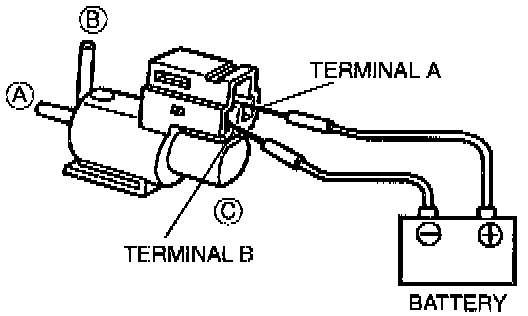

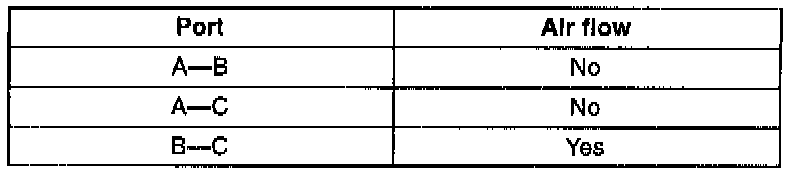

4. Apply battery positive voltage to terminal A and ground terminal B of the solenoid valve. Verify that air flows as shown.




5. If not as specified, replace the VRIS solenoid valve.
