No Load Test

No Load Test

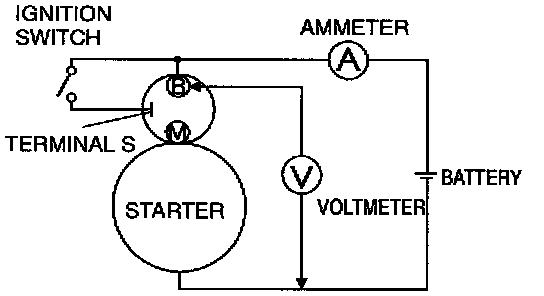

1. Connect the starter, battery, voltmeter and ammeter as shown in the figure.

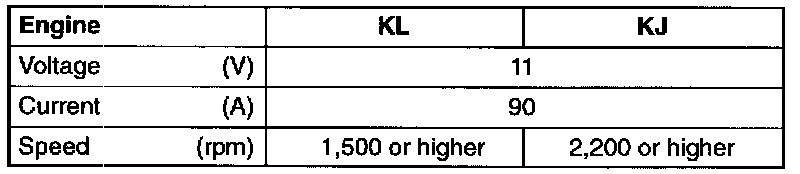

2. Measure the voltage, current, and speed as shown .
3. If not as specified, repair or replace inner parts as necessary.
