Windshield Washer Motor: Service and Repair

Removal / Installation
1. Remove the right mud guard.
2. Extract the washer fluid.

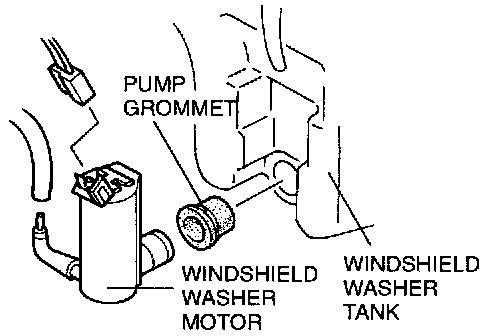

3. Remove the windshield washer motor as shown.
4. Remove the pump grommet.
5. Install in the reverse order of removal.
