Windshield Washer Motor: Testing and Inspection

Inspection
1. Turn over the right mud guard.

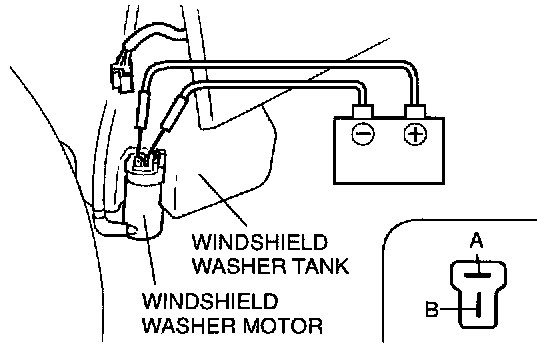

2. Disconnect the windshield washer motor connector and connect battery positive voltage to terminal B and ground to terminal A of the windshield washer motor.
3. Verity that the windshield washer motor operates.
4. If the windshield washer motor does not operate, replace it.
