Wiper Motor: Service and Repair

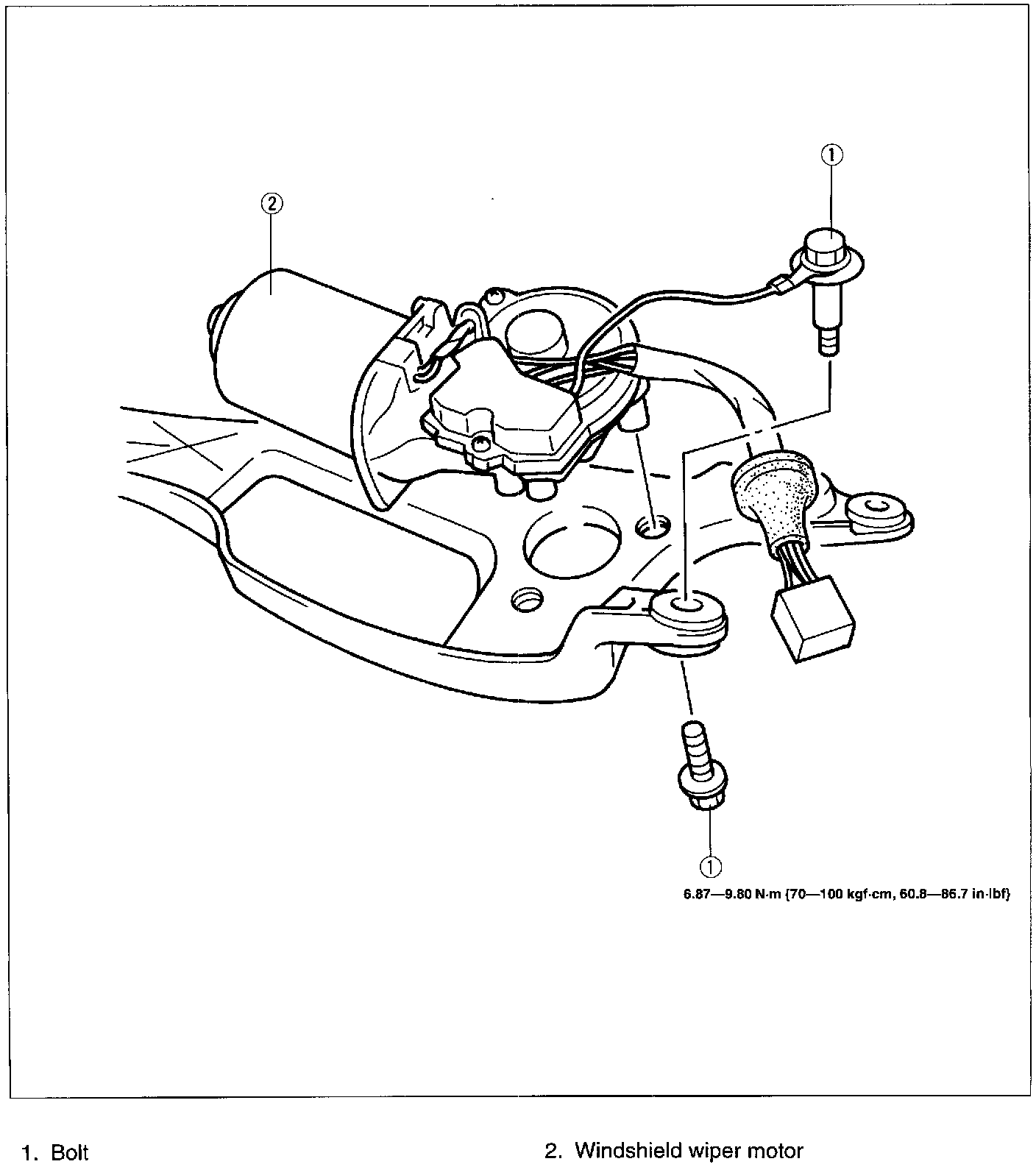

Removal / Installation
1. Remove the windshield wiper frame and wiper link.
2. Remove in the order shown in the figure.
3. Install in the reverse order of removal.
4. Adjust the wiper arm and blade after installing it.

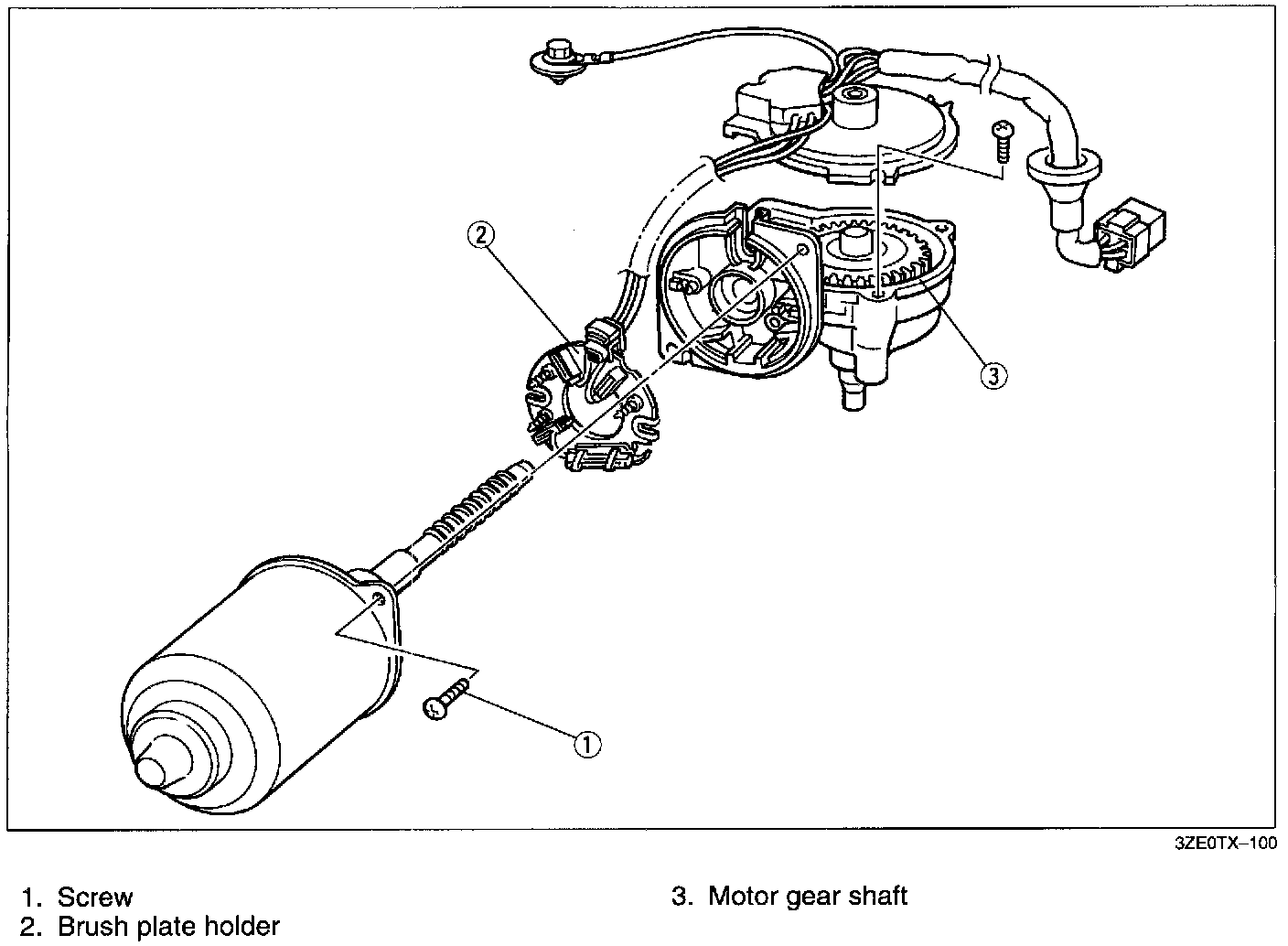

Disassembly / Assembly
1. Disassemble in the order shown in the figure.
2. Assemble in the reverse order of disassembly.
