Wiper Motor: Testing and Inspection
Inspection1. Disconnect the windshield wiper motor connector.

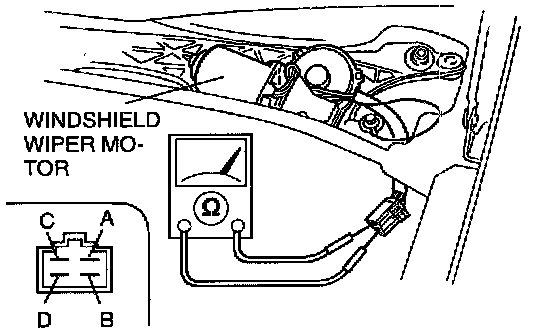

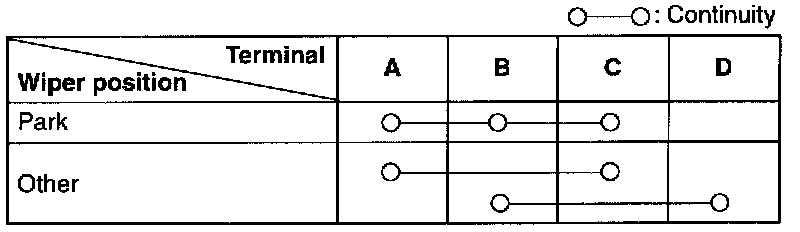

2. Check for continuity between the windshield wiper motor terminals as indicated below.

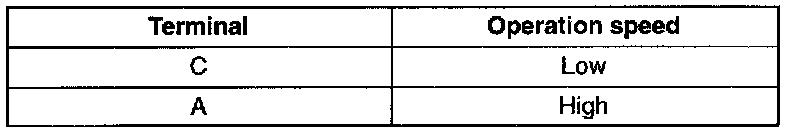

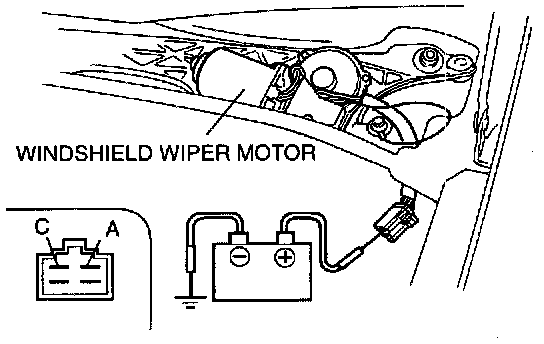

3. Connect battery positive voltage to the terminals of the windshield wiper motor connector and ground to a bare metal part of the vehicle. Verify that the windshield wiper motor operates as indicated.
4. If not as specified, replace the windshield wiper motor.
