Cruise Control Servo: Testing and Inspection

1. Disconnect the cruise actuator connector.
2. Measure the voltage at cruise actuator connector terminals as indicated below.
3. If not as specified, inspect the pans listed under "Inspection area" and the related wiring harnesses.
4. If the parts and wiring harnesses are okay but system still does not work properly, replace the cruise actuator.

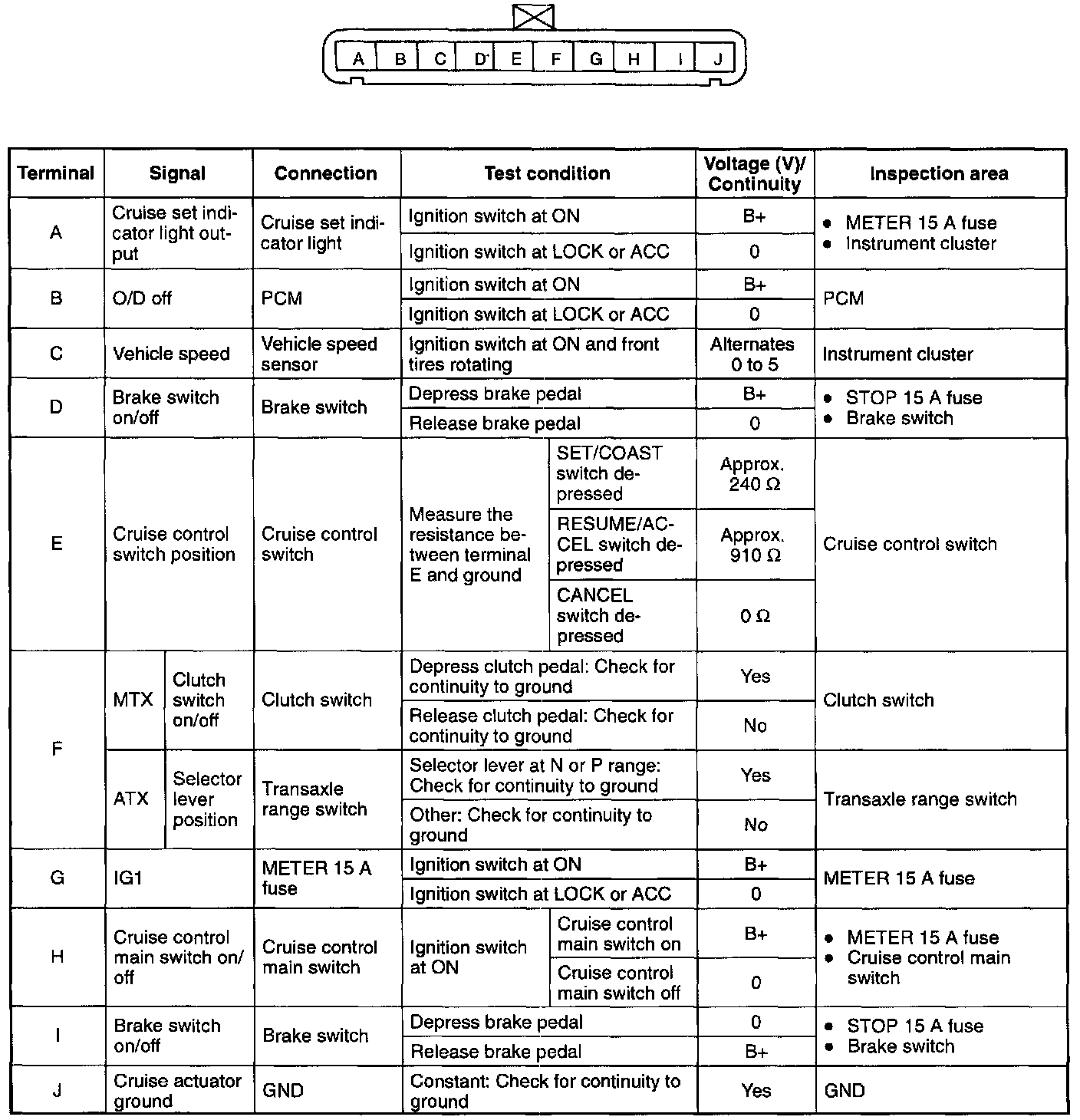

Terminal voltage list (reference)
