Receiver Dryer: Testing and Inspection
1.
Check for cracks, damage and oil leakage. If any are found, replace the condenser.
2.

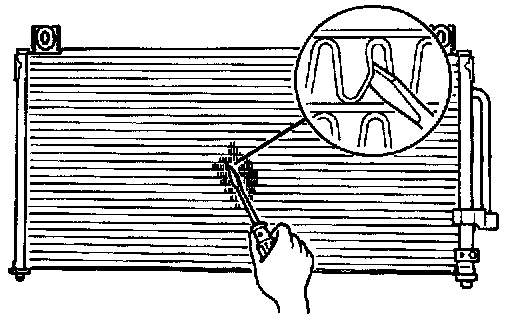

Check for bent fins. If any are bent, use a flathead screwdriver to straighten them.
