Front

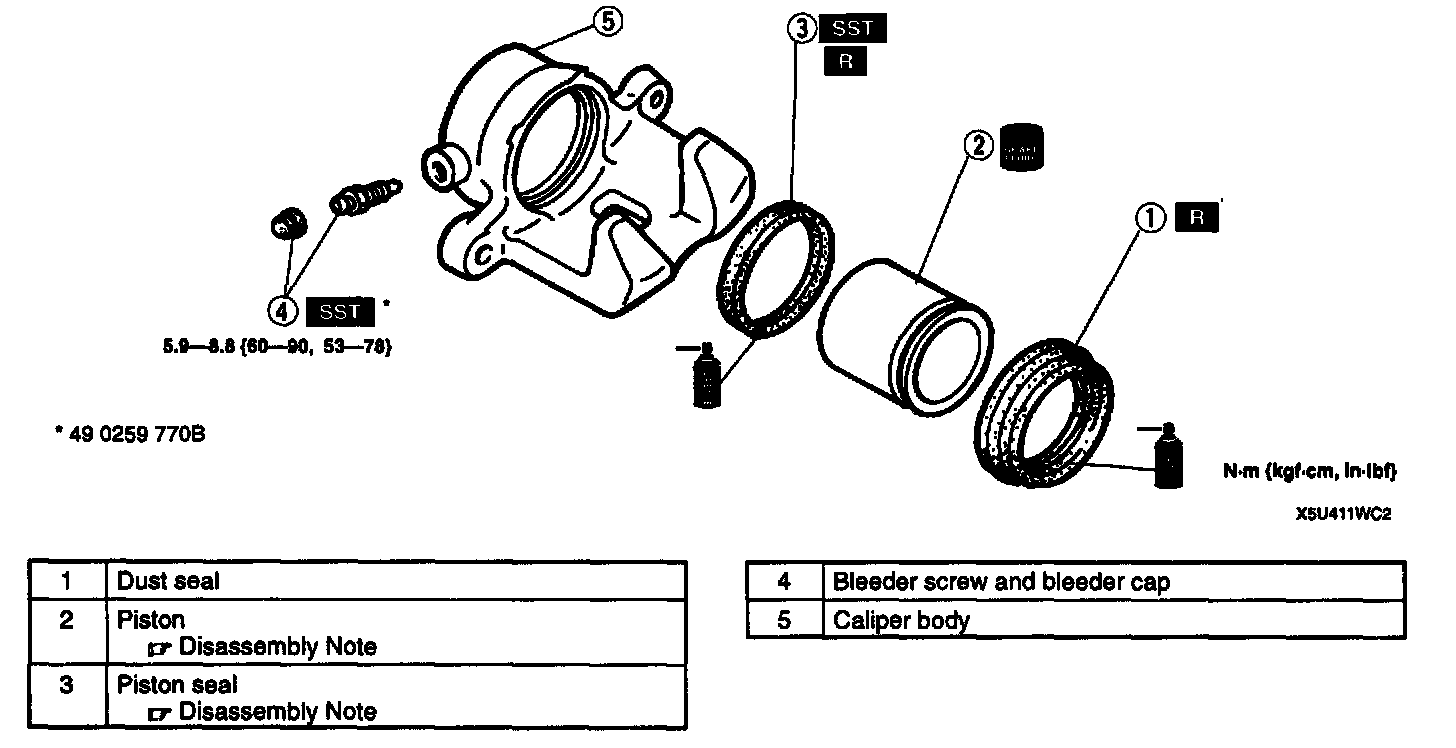

CALIPER (FRONT) DISASSEMBLY/ASSEMBLY





1. Disassemble in the order indicated in the table.
2. Install in the reverse order of removal.

Piston Disassembly Note





1. Place a piece of wood in the caliper.
2. Gently blow compressed air through the hole to force the piston out of the caliper.

Piston Seal Disassembly Note





^ Remove the piston seal by using the Special Service Tool (SST).
