Blower Unit

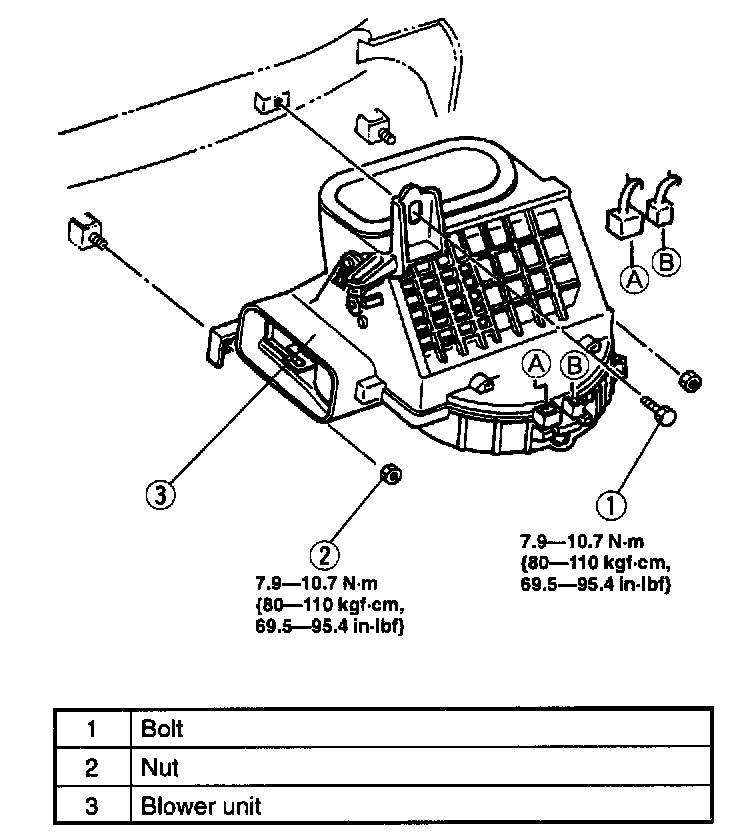

BLOWER UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the glove compartment.




3. Remove the bracket.




4. Remove the seal plate.




5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.

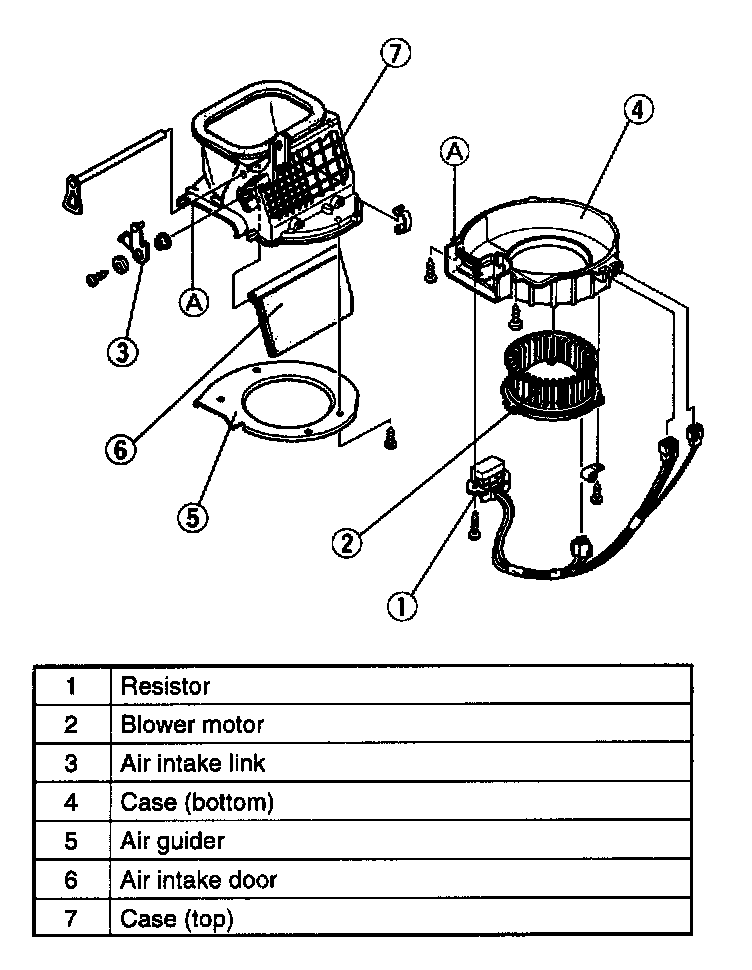

BLOWER UNIT DISASSEMBLY/ASSEMBLY




1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
