Condenser Fan Motor: Service and Repair

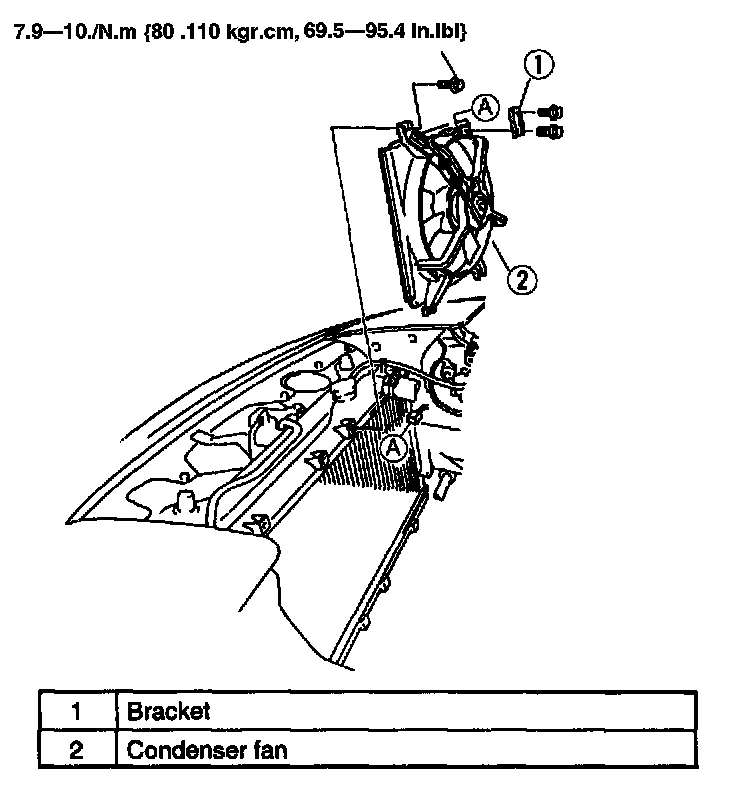

CONDENSER FAN REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Loosen the lower installation bolt of condenser tan.




3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
