Variable Induction Check Valve: Testing and Inspection

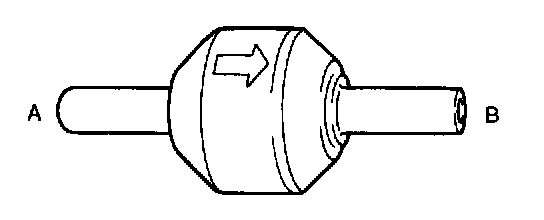

1. Remove the VTCS check valve (one-way).




2. Blow through A and verify that the air flows from B.
- If not as specified, replace the VTCS check valve (one-way).

3. Blow through B and verify that the air does not flows from A.
- If not as specified, replace the VTCS check valve (one-way).
