Solenoid Valves

SOLENOID BODY REMOVAL/INSTALLATION [LA4A-EL]
1. Remove the control valve body.

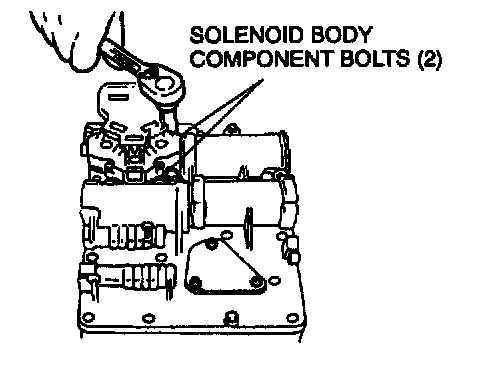

2. Remove the solenoid body component.

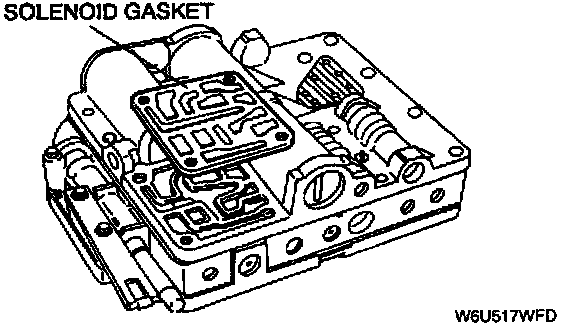

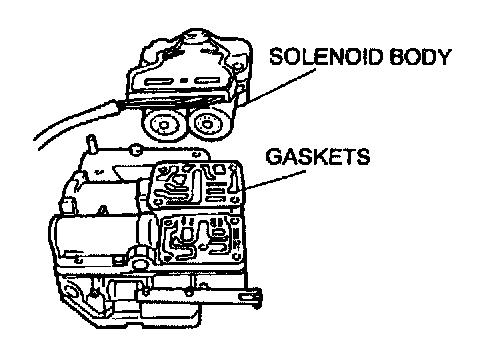

3. Remove the solenoid gasket from the accumulator body. Discard the solenoid casket.

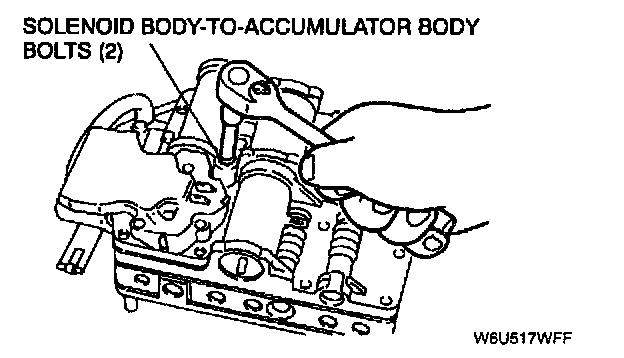

4. Install the solenoid body and a new gasket on the accumulator body with the bolts.





Note Match the solenoid body gasket to the passages.





5. Tighten the bolts.
Tightening torque
10 Nm (1.1 kgf.m, 8 ft. lbs.)
6. Install the control valve body.
7. Carry out the time lag test and line pressure test.
8. Carry out the road test.
