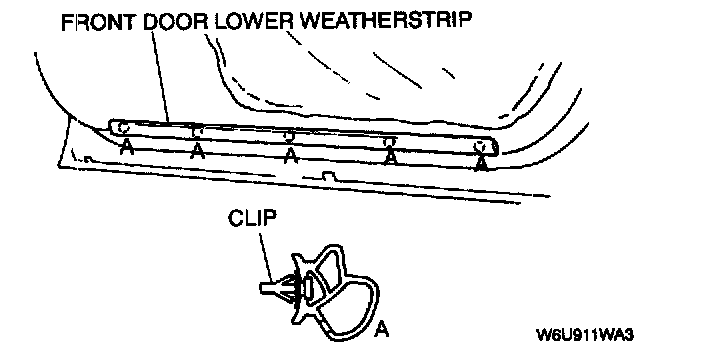

Front Door Lower Weatherstrip

1. Remove the front door trim.




2. Disengage the clips by using a fastener remover.
3. Remove the front door lower weatherstrip.
4. Install in the reverse order of removal.
