Diagnostic Connector - ABS: Testing and Inspection

ABS HARNESS AND INPUT SIGNAL INSPECTION
1. Disconnect the ABS CM connector with the ignition switch at OFF.

Caution Be careful not to damage the terminals during inspection.

2. Insert a thin isolation plate to the short bar of the connector.

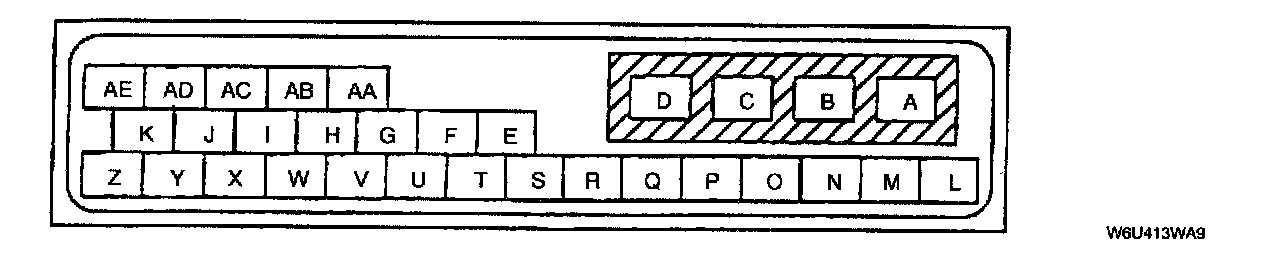

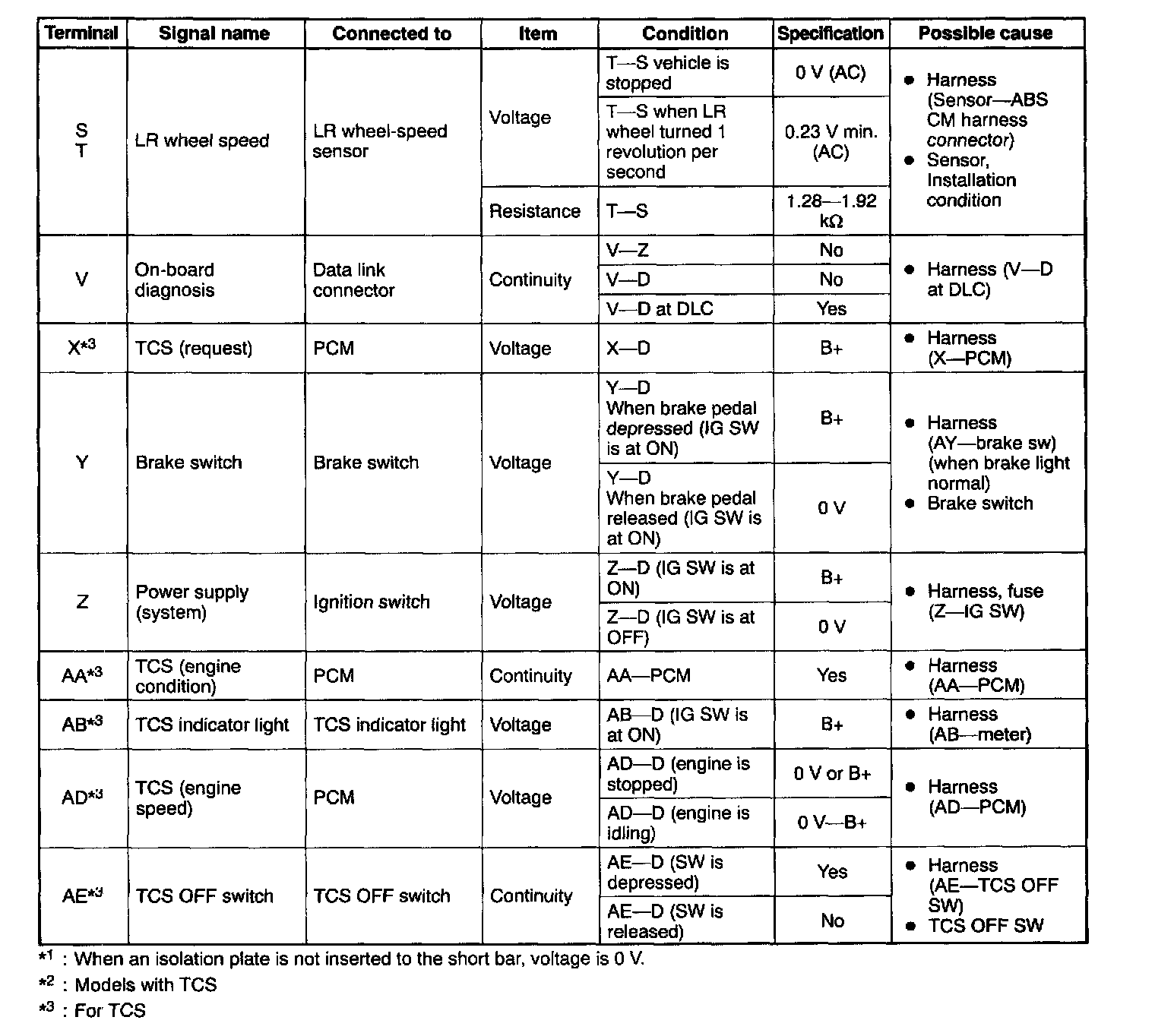

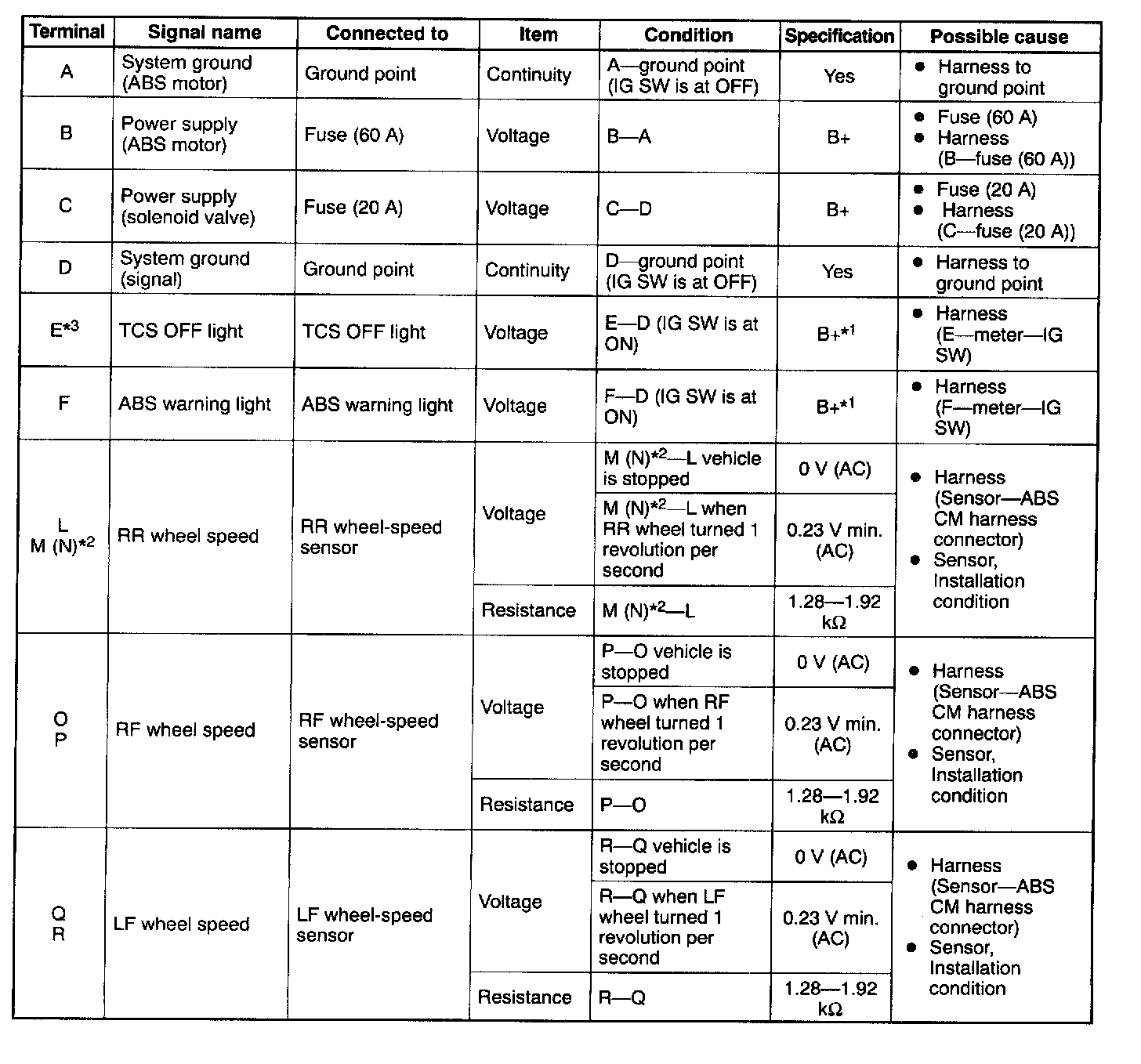

3. Attach a wire to the tester lead to avoid damaging the terminals then inspect voltage, resistance or continuity, referring to the image above.
*1 When an isolation plate is not inserted to the shortbar, voltage is 0 V.
*2 Models with TCS
*3 For TCS
