Variable Induction Control Solenoid: Service and Repair

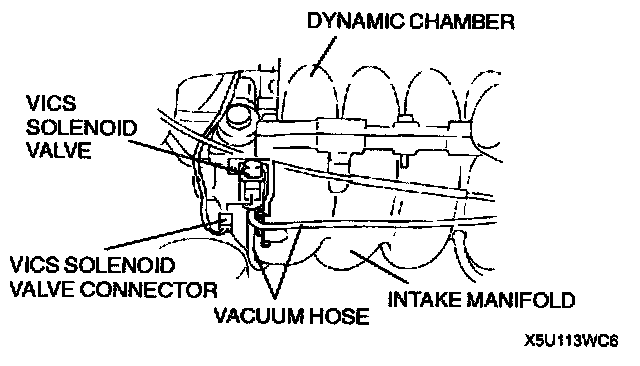

VICS SOLENOID VALVE REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Disconnect the VICS solenoid valve connector.





3. Disconnect the vacuum hose from the VICS solenoid valve.

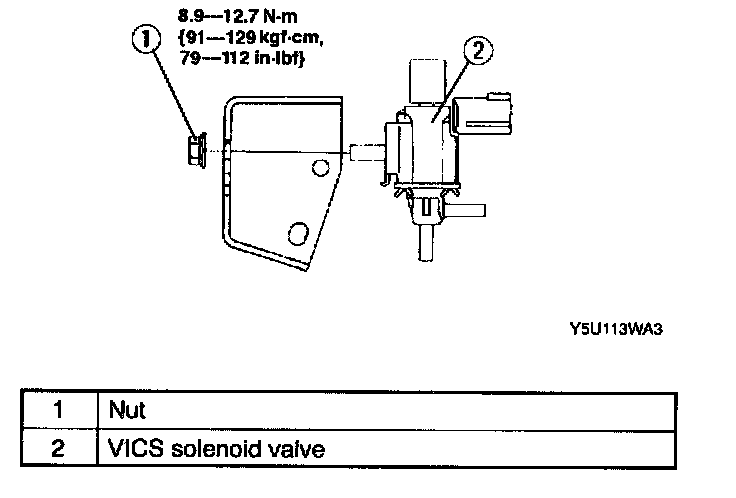

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
